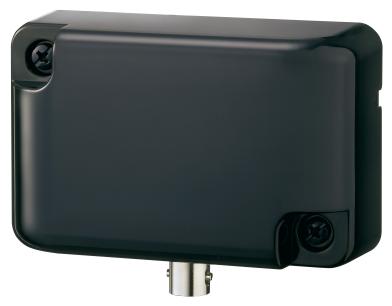

TOA IR-520R Infrared Wireless Receiver

เข้าชม 818 | ตอบ 0
TOA IR-520R Infrared Wireless Receiver
  • ยี่ห้อ : TOA
  • รุ่น : IR-502R
  • The IR-520R Infrared Wireless Receiver is designed for exclusive use with the IR-702T Infrared Wireless Tuner. It can be mounted to a wall or a microphone stand.
    Specification
    Power Source 24 V DC (supplied from the IR-702T)
    Current Consumption Max. 30 mA
    Infrared Detector
    Wavelength 870 nm
    Carrier Frequency Channel A: 3.100 MHz
    Channel B: 3.350 MHz
    Communication Area Approx. 15 m (50 ft) in a space without any obstacles
    Connection Terminal 75 Ω, BNC jack
    Operating Temperature 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
    Operating Humidity 30 % to 85 %RH (no condensation)
    Finish Filter section: Polycarbonate, optical cut filter
    Dimensions 84.5 (W) × 63.5 (H) × 32 (D) mm (3.33' × 2.5' × 1.26')
    Weight 100 g (0.22 lb) (unit only)
    Accessory Stand mounting bracket …1, Bracket mounting screw …2
  • ราคาปกติ : 3,480.00 ฿
  • ราคาพิเศษ : 3,140.00 ฿
