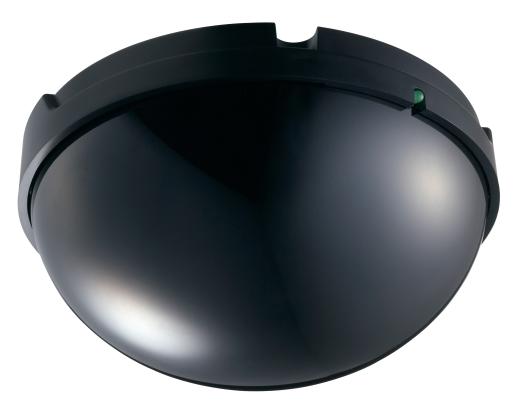

TOA IR-500R Infrared Wireless Receiver
TOA IR-500R Infrared Wireless Receiver
|
- ยี่ห้อ : TOA
- รุ่น : IR-500R
-
| Power Source |
24 V DC (supplied from the IR-702T) |
| Current Consumption |
Max. 40 mA |
Infrared Detector
| Wavelength |
870 nm |
| Carrier Frequency |
Channel A: 3.100 MHz
Channel B: 3.350 MHz |
| Reception Angle |
Vertical: 80゜ (up to 30゜ movable downward)
Horizontal: 80゜ (up to 30゜ movable left or right) |
| Communication Area |
Approx. 15 m (50 ft) in a space without any obstacles |
| Connection Terminal |
75 Ω, BNC jack |
| Operating Temperature |
0 ℃ to +40 ℃ (32 ゜F to 104 ゜F) |
| Operating Humidity |
30 % to 85 %RH (no condensation) |
| Finish |
Filter section: Polycarbonate, optical cut filter
Base: ABS resin, off-white |
| Dimensions |
70 (W) × 120 (H) × 72 (D) mm (2.76' × 4.72' × 2.83') |
| Weight |
220 g (0.49 lb) (unit only) |
- ราคาปกติ : 7,560.00 ฿
- ราคาพิเศษ : 6,810.00 ฿
-
|
| |
|
| |
|
