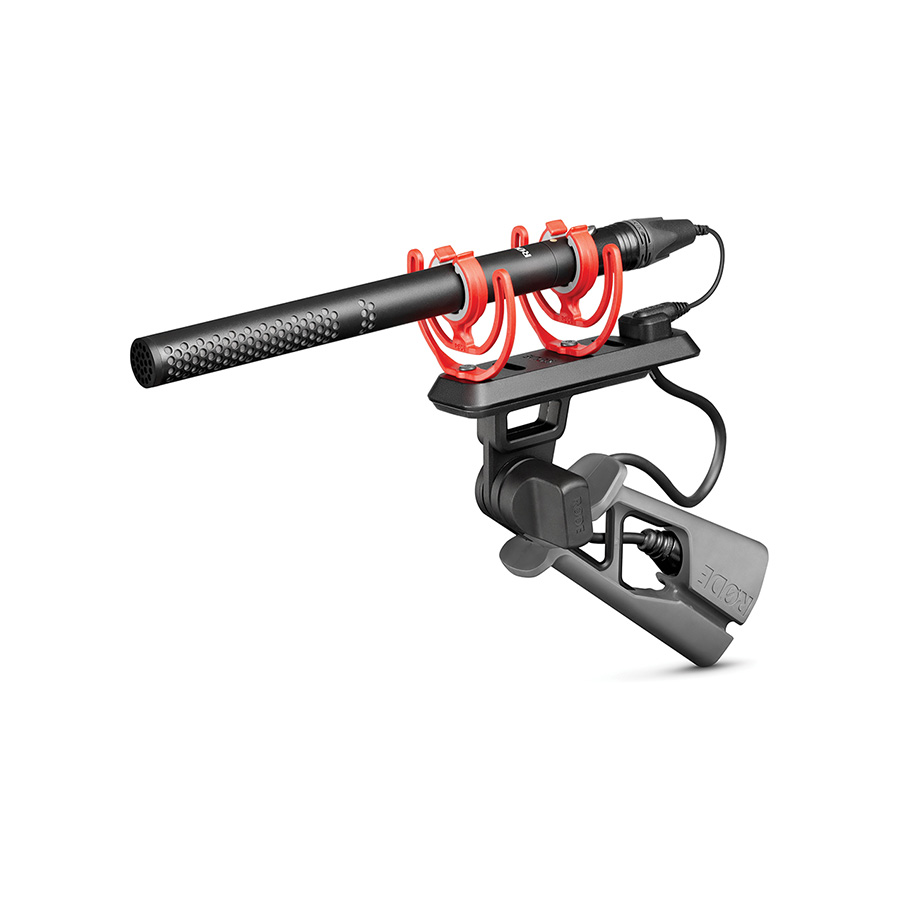

The NTG5 is an ultra-lightweight professional shotgun microphone that is ideal for use in the most demanding recording applications. Key Features:
Revolutionary acoustic design with unmatched acoustic transparency and a natural, uncoloured sound
Extremely lightweight (just 76g) and short in length (just 203mm)
Tightly controlled frequency response and very low self-noise
Highly directional supercardioid polar pattern
RF-bias technology and conformal coating ensure superior performance in adverse conditions

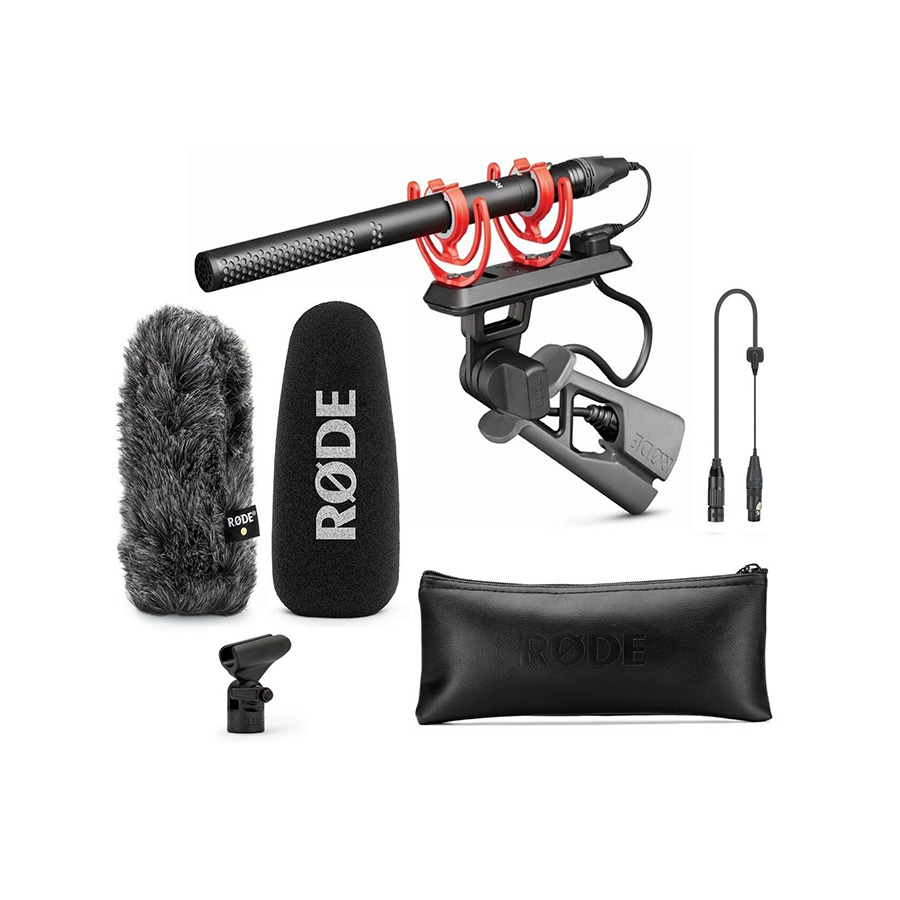

Comes in a complete location recording kit with WS10 windshield, PG2-R pistol grip and accessories
Acoustic Principle RF-bias condenser
Active Electronics RF-bias demodulation
Polar Pattern Supercardioid shotgun
Frequency Response 20 Hz - 20 kHz
Frequency Response 80 Hz - 20 kHz ±3 dB
Output Impedance 25 Ω
Signal to Noise Ratio 84 dB
Equivalent Noise 10 dB SPL (A-weighted, as per IEC651)
Input SPL @ 1% THD 130 dB SPL (1kHz @ 1% THD, 600 Ω load)
Power Requirements 2 mA @ 48V phantom power
Sensitivity -23.5 dB re. 1 Volt/Pascal or Better (66 mV @ 94 dB SPL
@ 1 kHz)
