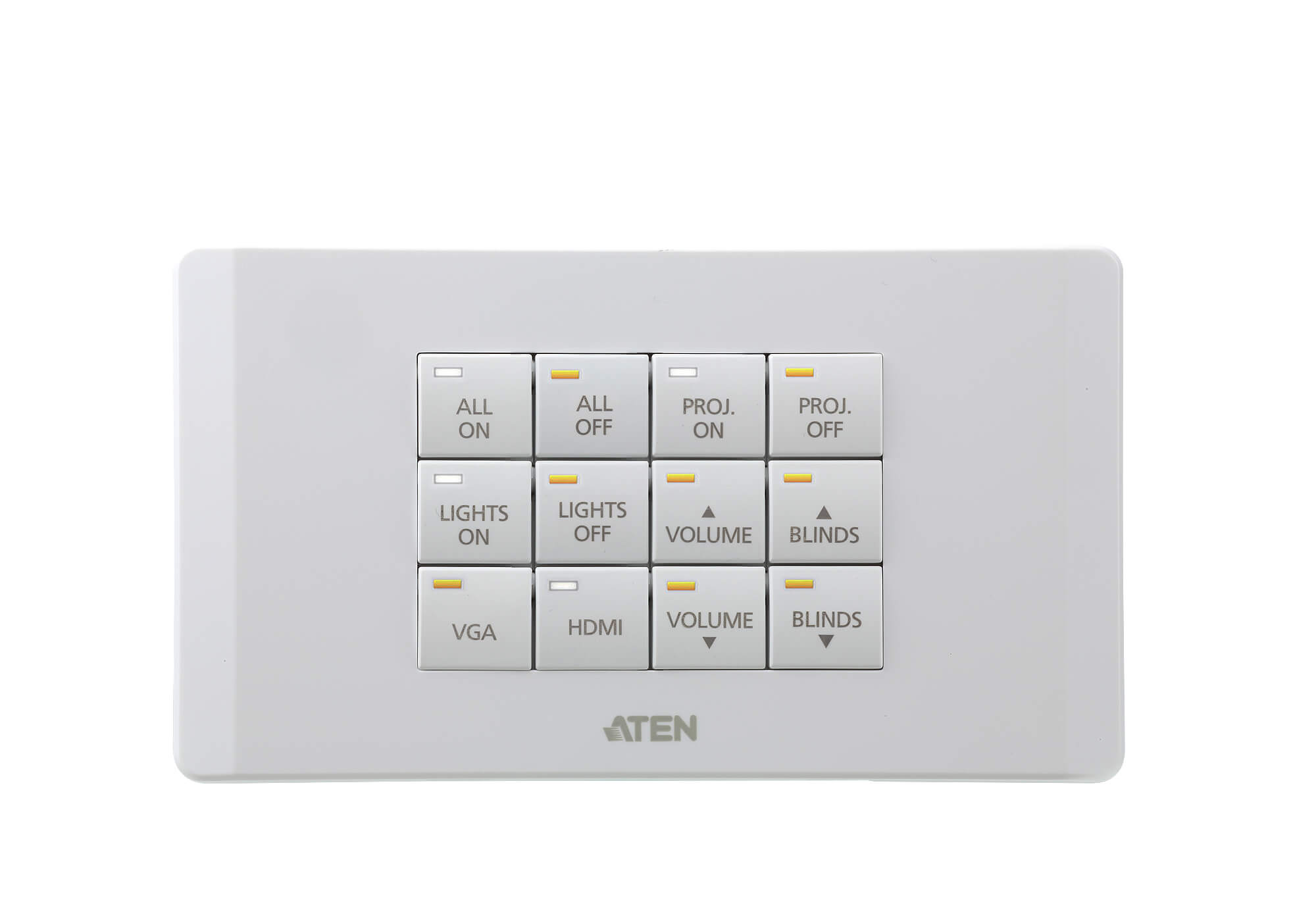

ATEN VK112EU Control System - 12-button Keypad
ATEN VK112EU Control System - 12-button Keypad
|
- ยี่ห้อ : ATEN
- รุ่น : VK112EU
- สินค้า By Order 30-45 วัน สนใจ TRUE: 089 1990528 บริการทุกวัน
- Key pad - provides physical connection to the ATEN Control System
- Fully customizable with 125 layout combinations of 6 to 12 buttons
- System LED indicators for quick connection status check
- Dual-color button LEDs for clear indication and visibility in dark environments
- Easy ID paring with Control Box for Ethernet communication

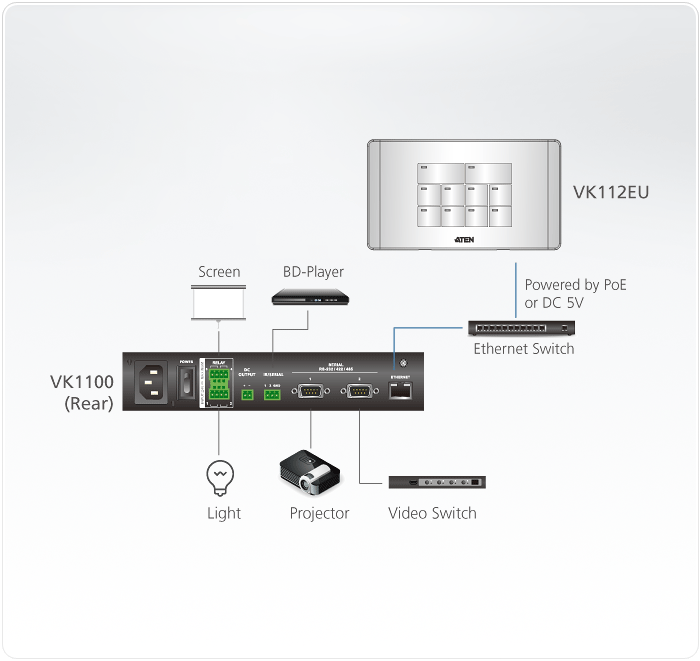

- Up to 8 keypads connect to a single Control Box for future scalability
- Versatile modes support flexible behavior settings for each button
- Intuitive web GUI for easy keypad configuration
- Redundant power supplies with Power over Ethernet (PoE) and DC power
- Customized button engraving service
Ethernet • 1 x RJ-45 Female, 10/100Base-T
• Supported Protocol: ICMP, TCP/IP, DHCP, HTTPS
• DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds:
IP: 192.168.0.60
Subnet Mask: 255.255.255.0
Keypad Layout - 6~12 buttons customizable in 125 keypad layouts
Switches
Controller ID - 1 x 16-segment Switch
Keypad ID - 1 x 8-segment Switch
Reset Button - 1 x Semi-recessed Pushbutton
Power Consumption - DC5V:1.25W:6BTU
- ราคาปกติ : 12,300.00 ฿
- ราคาพิเศษ : 11,500.00 ฿
-
|
| |
|
| |
|
|
|
