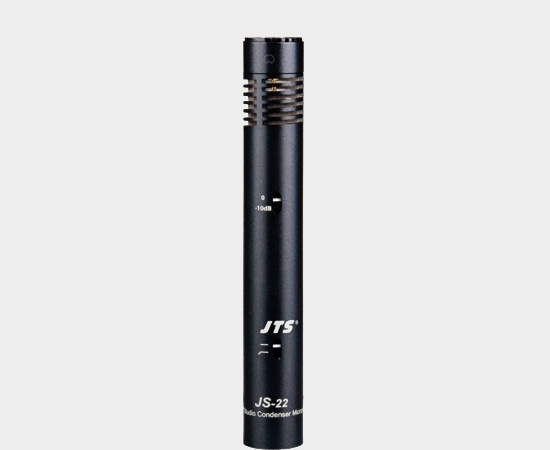

Based on the successful experience of JS-1 series JS-22 is designed for instrument miking from strings to percussions. The JS-22 is built on a solid brass with accurate processing. The 1/2” golden plated diaphragm is manually assembled by JTS craftsman. The precise designed circuit with low cut and pad feature provides flat response. This microphone royally reproduces any kinds of instruments and vocals. Application : Acoustic guitar, acoustic bass, strings, piano, woodwinds, orchestra, stereo pick-up, ensemble vocals and cymbals.
-Type Condenser Mic
-Frequency Response 20~20,000 Hz
-Sensitivity
-36±3 dB* (15.8mV) 0dB=1V /Pa,1kHz
-Directional Pattern Cardioid
-Attenuation Switch -10dB
-Low Frequency Roll-off 80Hz
-Impedance 100Ω
-Max. SPL For 1% T.H.D. 140 dB
-Signal To Noise Ratio 78dB
-Power Supply 36~52VDC phantom power
-Current consumption ≤3mA
-Output XLR-M type(power module)
-Dimensions(mm) Ø22.5mm(W) * 150.5mm(H)
