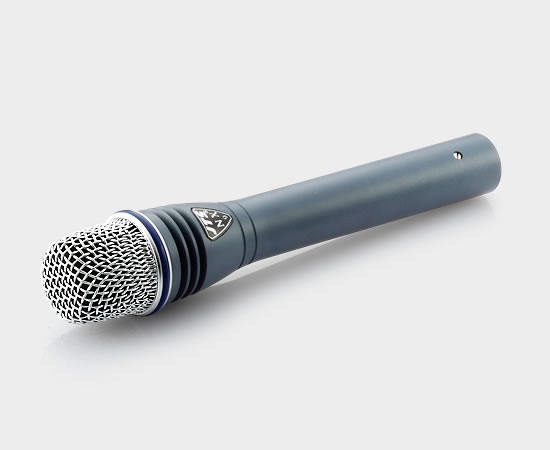

The NX-9 is innovated for overheads, hi-hat, acoustic guitar and other instruments. The NX-9 provides extended frequency response and enlarged dynamic range. It delivers smooth and transparent reproduction.
-Type Electret Condenser
-Frequency Response 60~18,000 Hz
-Polar Pattern Cardioid,rotationally symmetrical about microphone axis, uniform with frequency
-Sensitivity(at 1,000Hz) -70dB*(0.32mV)*0dB=1V/μbar
-Output Impedance 400Ω
-Phasing Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
-Connector Three-pin professional audio connector
(male XLR type)
-Case Metallic enamel-painted die cast metal body with hardened, matte-finished steel grille
-Net Weight 230 grams (8.1 oz)
-Touch Noise. Super low
-Power Supply 9-52V phantom power or battery 1.5V AA
