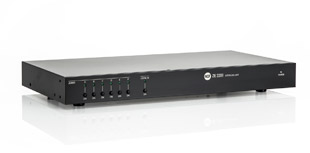

ZE 2200 is a 6-zone expander allowing to increase the system zones. Up to 8 units can be connected in order to reach a maximum of 54 manageable zones. It offers the possibility to either share the main unit music programme or insert a local source. As the system’s main units, also ZE 2200 is based on a dual bus architecture, where the first bus is mainly dedicated for selective / all-call paging, while the second bus is for music distribution (or other signals).
Direct link to ZM 2100 or ZM 2124 to expand the number of the system output zones till 54 by linking up to 8 devices in daisy-chain wiring topology
6 zone management based on ZM 2000 dual-bus system architecture: primary and secondary buses
Interconnection terminals for power amplifiers to manage primary and secondary buses independently, using 100V single or dual amplifier configuration or 0dB multiamplifier configuration according to system requirements
Auxiliary input to inject a local program on the secondary bus
Switches with indicators to send or not the secondary bus program (i.e. music) on each of the 6 zone outputs
GPI and GPO logic ports are available for interface purposes with third parties systems and for monitoring feedback.
