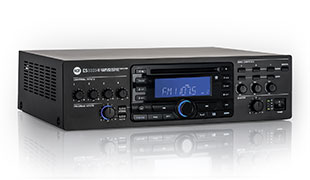

RCF ES 3323 3-ZONE MIXER AMPLIFIER AND CD/USB/BLUETOOTH MP3 PLAYER

ES 3323 II is a mixer-amplifier with 4 mic-line audio inputs on removable connectors (the first input also has an XLR socket), CD/USB/Bluetooth – MP3 player and tuner and an aux input for an additional external music source.

The amplifier nominal power is 320 W, available on 100 – 70 V constant voltage output (for loudspeakers having 100 – 70 V transformers). The 3 PAGING buttons on the front panel can be used to select zones to be paged by either the channel 1 or 4; The 3 MUSIC buttons turn the music on in the respective zones. As (optional) system expansion, it is possible to link a second generic external amplifier (delivering enough power for all loudspeakers, i.e. RCF UP 2321) to keep the background music in the zones that are not paged.

• CD-USB/MP3 Player / FM tuner / Mixer Amplifier / 3 zone control - Bluetooth connection with external devices
• IR Remote control for CD - USB/MP3 player & tuner functions
• Full digital technology amplifier 320W RMS, 100V-70V outputs
• 4 universal inputs with phantom facility, Presence Control and per-channel High-Pass filters
• RJ45 connectors on input 2 and 3 for connection to BM3001 and BM 3003 microphone
• Screw terminal connections, additional XLR and RJ45 input connections available
• Configurable Priority settings, VOX facility on input 1
• Selectable aux input for music source with volume and tone controls
• USB port on front panel allows reproduction of MP3 files from a memory stick
• Music On Hold and PRE outputs
• The 3 PAGING buttons can be used to select zones to be paged by either the channel 1 or 4
• GENERAL call button is available
• The 3 MUSIC buttons turn the music on in the respective zones
• Possible to link a external amplifier (i.e. RCF UP 2321) to keep the background music in the zones that are not paged
• Lw impedance (min. 4 Ω) 2 W output for a monitor loudspeaker is available
