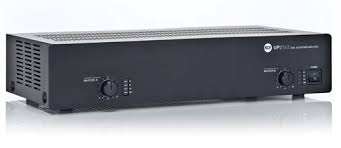

UP 2082 is a device with 2 separated and independent 80 W amplifiers, each having 2 audio inputs, of which one with priority function through a closing contact.
Both the audio inputs are at ‘line’ level: for pre-amplified signals or music sources (e.g. CD players, tuners, etc.).The amplifier output is available either for low impedance loudspeakers (min. 4 Ω) or 100 – 70 V constant voltage line (for loudspeakers having 100 – 70 V transformers). The amplifier is Class D with switching power supply; the overall weight is extremely reduced plus it offers a wide audio bandwidth quality.
Power Amplifier designed for the transmission of announcements and / or musical programmes
Main input on removable connector
AUX Input for music sources removable connector
Controls for treble, bass and Gain on the AUX Input
Main Input can have priority over the Aux Input (by means of an external command linked to the removable connector)
Output speaker available either for low impedance loudspeakers (min. 4 Ω) or 100 – 70 V constant voltage line
Front panel LEDs indicate the device state (ON, PROT), the priority activation (PRIOR) and the signal/peak level (SIG/PK)
