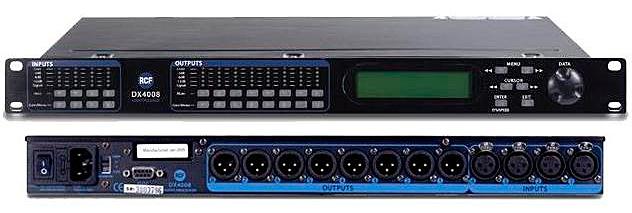

The DX 4008 is a complete 4 input - 8 output digital loudspeaker management system designed for the touring or fixed sound installation markets. The absolute latest in available technology is utilized with 32-bit (40-bit extended) floating point processor and high performance 24-bit Analog Converters. The high-bit DSP prevents noise and distortion induced by truncation errors of the commonly used 24-bit fixed-point devices. A complete set of parameters include I/O levels, delay,polarity, 6 bands of parametric EQ per channel, multiple crossover selections and full function limiters. The DX 4008 can be controlled or configured in real time on the panel or with the intuitive PC GUI accessed via the RS 232 interface. Software upgrade for CPU and DSP via PC keeps the device current with newly developed algorithms and function once available. Multiple setup storage and system security complete this professional package.
The DX 4008 is a complete 4 input - 8 output digital loudspeaker management system designed for the touring or fixed sound installation markets
Sampling rate can be set to 96kHz
Precise frequency control is achieved with its 1 Hz resolution
Inputs and outputs can be routed in multiple configuration to meet any requirements
The DX 4008 is shipped with a special PC Graphic User Interface (GUI) application - XLink
XLink gives the user an option to control the DX 4008 unit from a remote PC via the RS232 serial communication link
The GUI application makes much easier control and monitor the device, allowing the user to get the whole picture on one screen
Programs can be recalled and stored from/to PC's hard drive, thus expanding the storage to become virtuality limitless
Input Impendance:>10 kΩ
Output Impendance:50 Ω
Maximum Level:+ 20 dBu
Type:XLR 3 Electronically balanced
AUDIO PERFORMANCE
Frequency Response:+/- 0.1 dB (20 to 20 kHz)
Dynamic Range:115 dB typ (unweighted)
CMMR:> 60 dB (50 to 10 kHz)
Crosstalk:< -100 dB
Distortion:0.001% (1 kHz @ 18 dBu)
DIGITAL AUDIO PERFORMANCE
Resolution:32 bit (40-bit extended)
Sampling Rate:48 / 96 kHz
A/D - D/A Converters:24 bit
Propagation Delay:3 ms
No. of Programs:30
Display:4 x 26 Character Backlit LCD
Buttons:12 Mute Controls 12 Gain / Manu Controls 6 Menu Controls
'DATA' control:(dial encoder) Embedded Thumb Wheel
Level Meters:5 segment LED
Interface:RS 232 Female DB-9
LIMITERS
Threshold:-20 to +20 dBu
Attack Time:0.3 to 100 ms
Release Time:2 to 32 X the attack time
EQUALISATION
Type:Parametric, Hi-shelf, Lo-shelf 6 per I/O
Gain:in 0.25dB steps -30 to +15dB
Bandwidth:(Q=0.5 to 72) 0.02 to 2.50 octaves
CROSSOVER FILTERS
Filter Types:Butterworth, Bessel, Linkwitz Riley
Slopes:6 to 24dB/oct (96kHz) 6 to 48dB/oct (48kHz)
