TOA TS-820RC Infrared Central Unit (เครื่องควบคุมและจ่ายไฟ)ไมค์ชุดประชุม
ยี่ห้อ : TOA
รุ่น : TS-820RC

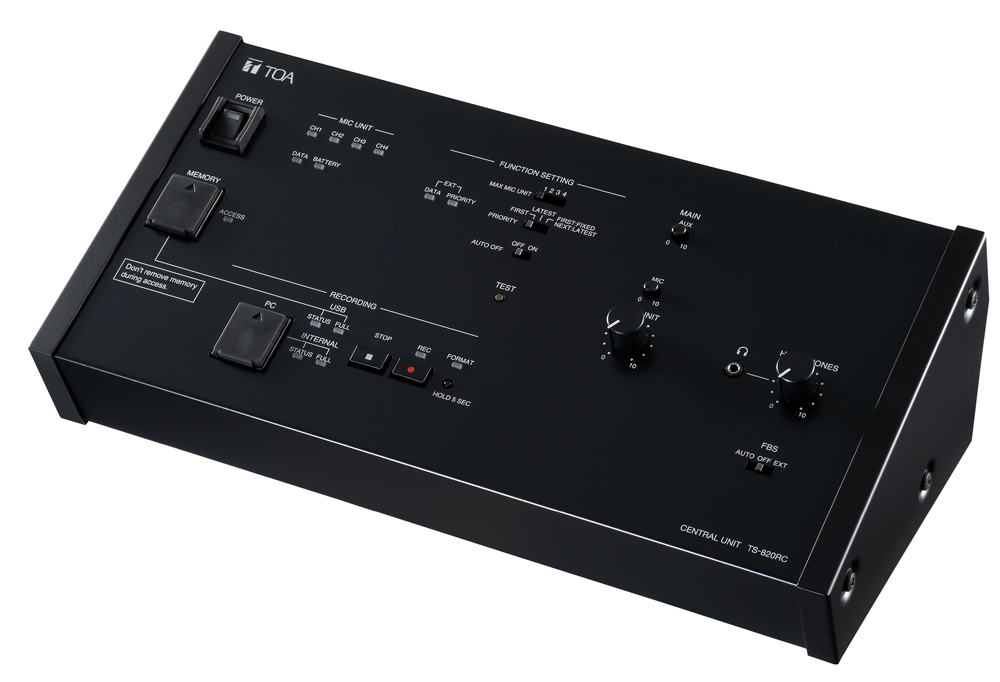

The TS-820RC is a Central Unit of the Infrared Conference System that allows easy installation and flexible layout. By connecting TS-905/907 IR Transmitter/Receiver, TS-820RC can control the Chairman and Delegate Units via wireless infrared signal. It features the installation confirmation function that allows the connection status of IR Transmitter/Receiver and Chairman/Delegate Units to be verified.
Power Source
100 - 240 V AC, 50/60 Hz (use of the supplied AC adapter)
Power Consumption
72 W
Current Consumption
Max. 3 A DC (when 24 V DC is supplied from the accessory AC adapter)
MIC: -60 dB (*2) , 600 Ω, unbalanced, φ6.3 mm phone jack (2P)
AUX: -20 dB (*2) , 10 kΩ, unbalanced, φ6.3 mm phone jack (2P)
Output
LINE: -10 dB (*2), 10 kΩ, unbalanced, φ6.3 mm phone jack (2P)
REC: -10 dB (*2), 10 kΩ, unbalanced, RCA pin jack
HEADPHONES: φ3.5 mm mini jack (3P:monaural)
Equalizer Input/Output
Input: -20 dB (*2), 10 kΩ, unbalanced, RCA pin jack
Output: -20 dB (*2), 10 kΩ, unbalanced, RCA pin jack
Number of ConnectableChairman/Delegate Units
64 units
Number of Connectable Infrared Transmitter/Receiver Units
Up to 4 units (with the use of distributor, up to 16 units connectable
when they are all TS-905, and up to 12 units when they are all TS-907, or TS-905 and TS-907 are used in combination)
Infrared Transmitter/Receiver I/O Terminal
BNC jacks
External Control Connection Terminal
D-sub connector (9P, male)/USB-B selectable
LED Indicator
Audio signal receiving indicators 1 - 4 CH, Data signal receiving indicator, External control priority indicator, External control communication indicator, Battery indicator (flashes when a Chairman/Delegate unit's battery nears complete discharge), Recording status indicator, Format in-progress indicator, Access Indicator, Internal memory status indicator, USB memory status indicator, Remaining internal memory capacity warning indicator, Remaining USB memory capacity warning indicator, Short-circuit indicator
Record Switch
Recording start button, Recording stop button, Format button
Recording Ports
USB-A (for USB memory devices) and USB Mini-B (for PCs)
Recording Function
Recordings can be made to a USB memory device (*3) or the internal memory.
Recording format: MP3 (MPEG-1 Audio Layer-3), monaural
Sampling frequency: 32 kHz, Bit rate: 128 kbps
Function Switch
Number of open microphones setting switch: 1/2/3/4
Mic-off setting switch: TIME OUT ON/OFF
Speech priority selector switch:
FIRST (First-in-first-out priority)
LATEST (Last-in-first-out priority)
FIRST:FIXED NEXT:LATEST (Priority fixed for the first unit, and last-in-first-out priority for all other subsequent units.)
FBS switch: AUTO/OFF/EXT
