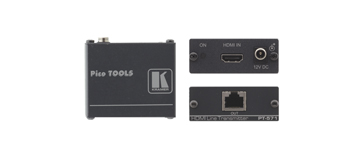

Kramer PT-571 HDMI over Twisted Pair Transmitter (ตัวส่งสัญญาน)

Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel).

DGKat™ Signal Integration - Kramer’s unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables. We strongly recommend using Kramer DGKat™ cables designed specifically for optimum performance.

System Range - Up to 90m (295ft) at 1080i, or up to 30m (98ft) at 1080p on shielded BC−DGKat524 cable. Up to 90m (295ft) at 1080i, or up to 70m (230ft) at 1080p on shielded BC−DGKat623 cable. Up to 100m (330ft) at 1080i or up to 90m (295ft) at 1080p on shielded BC−DGKat7a23 cable.

Cable - Requires shielded twisted pair (STP) cable. For optimum range and performance use, use Kramer's BC−DGKat524, BC−DGKat623 and BC−DGKat7a23 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non−Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.

EDID PassThru - Passes EDID signals between the source and display.

Status LED - Lights red when receiving power only, orange when output and power are attached, and yellow when both an active input and output are attached.

Power Connect™ System - A single connection to the transmitter powers the receiver.
