Kramer WP-561 Active Wall Plate - HDMI over Twisted Pair Transmitter

เข้าชม 1232 | ตอบ 0

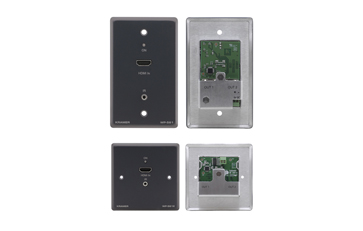

Kramer WP-561 Active Wall Plate - HDMI over Twisted Pair Transmitter
  • ยี่ห้อ : KRAMER
  • รุ่น : WP-561
  • The WP-561 is a DGKat™ twisted pair transmitter for HDMI and IR signals. The WP-561 converts an HDMI and IR signal to a twisted pair signal and the WP-562 converts the twisted pair signal back to an HDMI and IR signal.
    • Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel).
    • HDTV Compatible.
    • HDCP Compliant.
    • Bidirectional IR Support - IR is compatible with a Kramer transmitter and via a Kramer external remote IR receiver: C−A35M/IRR or C−A35M/IRE or C−A35M/2IRE.
    • HDMI Support - HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS−HD.
    • EDID PassThru - Passes EDID/HDCP signals from source to display.
    • Optional IR Emitter Cables - C−A35/IRE−10 single emitter & C−A35/2IRE−10 dual emitter.
    • Optional External IR Receiver Cables - C−A35M/IRR−3 and C−A35M/IRR−50.
    • System Range - Up to 90m (295ft) at 1080i, or up to 30m (98ft) at 1080p on shielded BC−DGKat524 cable. Up to 90m (295ft) at 1080i, or up to 70m (230ft) at 1080p on shielded BC−DGKat623 cable. Up to 100m (330ft) at 1080i or up to 90m (295ft) at 1080p on shielded BC−DGKat7a23 cable.
    • Cable - Requires shielded twisted pair (STP) cable. For optimum range and performance use, use Kramer's BC−DGKat524, BC−DGKat623 and BC−DGKat7a23 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non−Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
    • Status LEDs - ON (red), transmit (green).
    • Power Connect™ System - A single connection to the transmitter powers the receiver.
    • Dimensions - 6.9cm x 2.88cm x 11.4cm (2.71' x 1.13' x 4.49') US; 8.6cm x 2.88cm x 8.6cm (3.39' x 1.13' x 3.39') and 8cm x 2.88cm x 8cm (3.15' x 1.13' x 3.15') EU W, D, H.
    • Wall Plate Size
      INPUTS: 1 HDMI connector.
      OUTPUTS: 2 CAT 5 OUT on RJ−45 connectors.
      IR PORT: Bidirectional on a 3.5mm mini jack.
      MAX. DATA RATE: 4.95Gbps (1.65Gbps per graphic channel).
      COMPLIANCE WITH HDMI STANDARD: Supports HDMI and HDCP.
      POWER CONSUMPTION: 5V DC, 440mA (transmitter and receiver together).
      DIMENSIONS: 6.9cm x 2.88cm x 11.4cm (2.71' x 1.13' x 4.49') US; 8.6cm x 2.88cm x 8.6cm (3.39' x 1.13' x 3.39' and 8cm x 2.88cm x 8cm (3.15' x 1.13' x 3.15') EU W, D, H.
      WEIGHT: 0.2kg (0.4lbs).
      INCLUDED ACCESSORIES: Power supply.
       - 1 gang EU/US.
  • ราคาปกติ : 9,900.00 ฿
  • ราคาพิเศษ : 7,920.00 ฿
