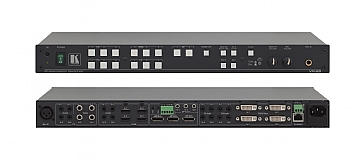

Kramer VP-28 14-Input Multi-Format Presentation Switcher with Stereo Audio
ยี่ห้อ : KRAMER
รุ่น : VP-28
VIDEO INPUTS:
3 composite video on RCA connectors,
3 HDMI connectors,
2 DisplayPort connectors,
3 PC/DVI on DVI connectors.
AUDIO INPUTS:
1 mic on an XLR connector,
1 mic on a 6.3mm phone jack connector (3mV/10kW condenser/dynamic),
3 CV, 3HDMI, 2 DP, 3 PC audio, 3 DVI, all unbalanced stereo audio on 3.5mm mini jack connectors.
VIDEO OUTPUTS:
1 composite video on an RCA connector,
1 HDMI connector,
1 DisplayPort connector,
1 PC/DVI on a DVI connector.
AUDIO OUTPUTS:
1 CV, 1 HDMI, 1 DP, 1 PC audio, 1 DVI, all unbalanced stereo audio on a 3.5mm mini jack connectors; 1 master balanced stereo audio on a 5−pin terminal block.
MAX. OUTPUT LEVEL:
Video: CV: 1.7Vpp, XGA: 2.3Vpp; Audio: Master: 17Vpp from mic, 12.4Vpp from line in, Local outputs: 8.8Vpp from line inputs.
Video: CV: 74dB, XGA: 71dB @5MHz; Audio: Master: 81dB from mic (@20mVpp input, 17Vpp output diff, “A” weighting, XLR microphone), 90 to 95dB from line in (“A” weighting), Local outputs: 110dB (“A” weighting).
CROSSTALK @1KHZ (ALL HOSTILE):
Video: CV: –54dB, XGA: –56dB (5MHz); Audio: Master: –70dB, Local outputs: –80dB from line in.
CONTROLS (LEVEL RANGE):
MASTER: <–12 to 70dB from mic, –79 to +15dB from line in.
COUPLING:
Video: CV: DC, XGA: DC; Audio: AC.
AUDIO THD + NOISE:
Master: 0.4% from mic, 0.02% from line in (“A” weighting); Local outputs: 0.04% from line in.
AUDIO 2ND HARMONIC:
Master: 0.03% from mic, 0.01% from line in; Local outputs: 0.02%.
COMPLIANCE WITH HDCP STANDARD:
Supports HDCP.
MAXIMUM BANDWIDTH DP TO HDMI:
One or two lane (1.65Gbps per lane).
INDICATOR LEDS:
IR.
POWER CONSUMPTION:
90–264V AC, 23VA.
OPERATING TEMPERATURE:
0° to +40°C (32° to 104°F).
STORAGE TEMPERATURE:
−40° to +70°C (−40° to 158°F).
HUMIDITY:
10% to 90%, RHL non−condensing.
PRODUCT DIMENSIONS:
19' x 7.20 x 1U (43.6cm x 18.30cm 4.36cm) W, D, H
PRODUCT WEIGHT:
1.8kg (4.0lbs) approx.
SHIPPING DIMENSIONS:
55.00cm x 27.60cm x 10.70cm (21.65' x 10.87' x 4.21' ) W, D, H
SHIPPING WEIGHT:
3.2kg (7.1lbs) approx.
INCLUDED ACCESSORIES:
Power cord, Kramer infrared remote control transmitter, Kramer ADC−DM/DF+GF DVI to DVI and VGA breakout cable, rack 'ears'.
