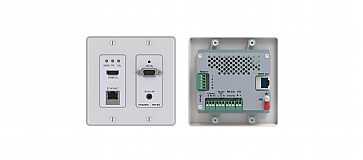

Kramer WP-20 Active Wall Plate − 4K UHD HDMI & Computer Graphics with Ethernet, Bidirectional RS−232 & Stereo Audio over HDBaseT Transmitter
Kramer WP-20 Active Wall Plate − 4K UHD HDMI & Computer Graphics with Ethernet, Bidirectional RS−232 & Stereo Audio over HDBaseT Transmitter
เข้าชม 1740
| ตอบ 0
Kramer WP-20 Active Wall Plate − 4K UHD HDMI & Computer Graphics with Ethernet, Bidirectional RS−232 & Stereo Audio over HDBaseT Transmitter
ยี่ห้อ : KRAMER
รุ่น : WP-20
INPUTS:
1 HDMI on an HDMI connector, 1 VGA on a 15−pin HD (F) connector, 1 unbalanced stereo audio on a 3.5mm mini jack.
OUTPUTS:
1 HDBaseT on an RJ−45 connector, 1 unbalanced stereo audio on a 3.5mm mini jack.
PORTS:
1 RS−232 3−pin terminal block, 1 Ethernet on an RJ−45 connector.
CONTROLS:
Remote switches for input switching and volume control, reset switch.
STANDARDS:
HDMI with Deep Color, x.v.Color™ and 3D; HDCP—works with sources that support HDCP repeater mode; HDBT certified.
MAXIMUM ANALOG AUDIO LEVEL:
3.1Vpp.
THD:
0.013%.
SNR:
–70dB.
SUPPORTED WEB BROWSERS:
Windows 7 and higher: Internet Explorer (32/64 bit) version 11, Firefox version 30, Chrome version 35; MAC: Chrome version 35, Firefox version 27, Safari version 7.
MAXIMUM TRANSMISSION DISTANCE:
180m (590ft) up to 1080p @60Hz @24bpp in extended mode, 130m (430ft) up to 1080p @60Hz @36bpp in normal mode.
POWER CONSUMPTION:
12V DC, 850mA.
OPERATING TEMPERATURE:
0° to +40°C (32° to 104°F).
STORAGE TEMPERATURE:
–40° to +70°C (–40° to 158°F).
HUMIDITY:
10% to 90%, RHL non−condensing.
COOLING:
Convection.
ENCLOSURE TYPE:
Aluminium.
DIMENSIONS:
2 gang USA 11.6 cm x 5.1cm x 11.4cm (4.57” x 2.01” x 4.49”) W, D, H; 2 gang EU 15.1cm x 4.7cm x 8.6cm (5.94” x 1.85” x 3.39”) W, D, H.
WEIGHT:
0.23kg (0.51lbs) approx.
SHIPPING WEIGHT:
0.51kg (1.12lbs) approx.
ENVIRONMENTAL REGULATORY COMPLIANCE:
RoHs and WEEE.
VIBRATION:
ISTA 1A in carton (International Safe Transit Association).
