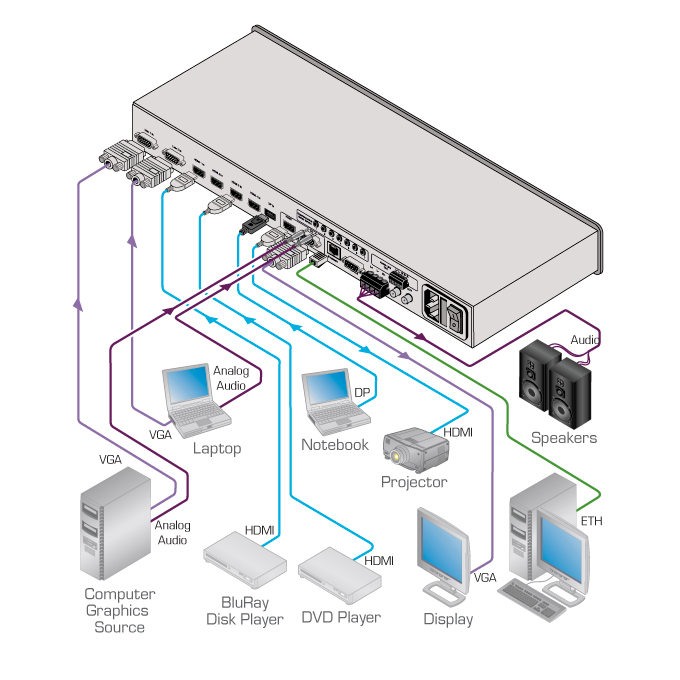

4 HDMI connectors, 2 universal (composite, s−Video, computer graphics and component) on 15−pin HD connectors, 1 DP connector, 1 S/PDIF on an RCA connector, 7 unbalanced stereo audio on 3.5mm mini jacks.
OUTPUTS:
1 HDMI connector, 1 PC (computer graphics) on a 15−pin HD connector, 1 balanced audio stereo output on a 5 pin terminal block (+4dBu nominal), 1 stereo speaker output (10W per channel into 8Ω) on a 4−pin terminal block connector, 1 digital S/PDIF output on an RCA connector.
Front panel buttons/OSD, IR remote control, RS−232 on a 9−pin D−sub connector, Ethernet.
ADDITIONAL CONTROLS:
Freeze, blank and zoom, different selectable vertical refresh rates, Video and Audio ProcAmp control, output image scaling and aspect ratio change, EDID capture.
POWER SOURCE:
100−240V AC, 50/60Hz, 49VA.
OPERATING TEMPERATURE:
0° to +40°C (32° to 104°F).
STORAGE TEMPERATURE:
−40° to +70°C (−40° to 158°F).
HUMIDITY:
10% to 90%, RHL non−condensing.
PRODUCT DIMENSIONS:
19' x 9.34 x 1U (43.6cm x 23.72cm 4.36cm) W, D, H
PRODUCT WEIGHT:
2.5kg (5.4lbs) approx.
SHIPPING DIMENSIONS:
52.50cm x 33.00cm x 10.70cm (20.67' x 12.99' x 4.21' ) W, D, H
