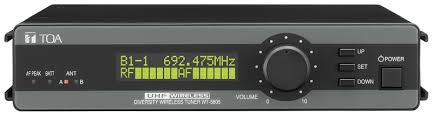

TOA WT-5805 UHF. Wireless Tuner 64 Frequencies
TOA WT-5805 UHF. Wireless Tuner 64 Frequencies
|
- ยี่ห้อ : TOA
- รุ่น : WT-5805
- The wireless tuner WT-5805 is a PLL-synthesizer controlled double superheterodyne diversity tuner to be used in UHF wireless systems.
| Power Source |
AC mains (supplied AC adapter must be used) |
| Power Consumption |
200 mA (12 V DC) |
| Receiving Frequency |
576 - 932 MHz (*2), UHF |
| Channel Selectable |
64 selectable frequencies |
| Receiving System |
Double super-heterodyne |
| Diversity System |
Space diversity |

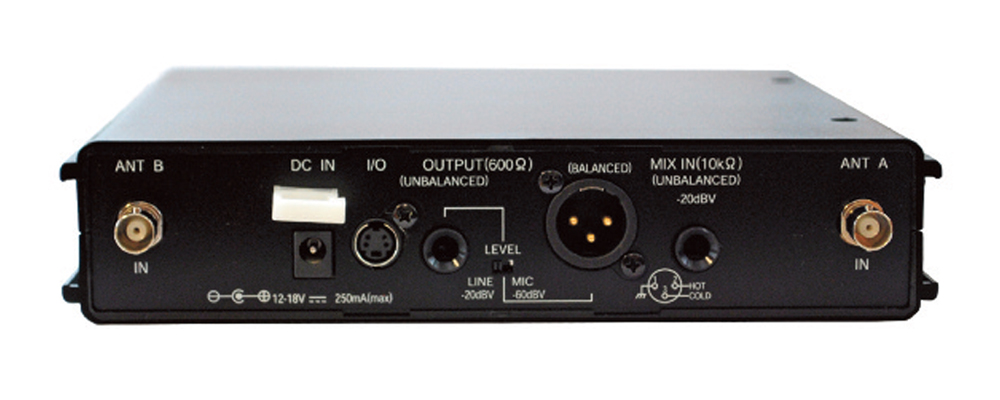

| Mixing Output |
MIC/LINE (selectable): -60 dB (*1) (MIC)/-20 dB (*1) (LINE), 600 Ω
phone jack (unbalanced), 600 Ω XLR-3-32 type connector (balanced) |
| Mixing Input |
-20 dB (*1), 10 kΩ, unbalanced, phone jack |
| Antenna Input |
75 Ω, BNC (phantom powering for antenna), 9 V DC, 30 mA (max) |
| Receiving Sensitivity |
90 dB or more, Signal to Noise ratio (20 dBμV input, 40 kHz deviation) |
| Squelch Sensitivity |
16 - 40 dBμV variable |
| Squelch System |
Using together of noise SQ, carrier SQ and tone SQ |
| Tone Frequency |
32.768 kHz |
| Indicator |
Audio (6 steps), RF (6 steps), ANT A/B, Audio (peak), Battery alarm |
| Channel Check |
Usable frequencies scanning |
| Signal to Noise Ratio |
110 dB or more (A-weight, unbalanced output) |
| Harmonic Distortion |
1 % or less (typical) |
| Frequency Response |
100 Hz - 15 kHz, ±3 dB |
| Operating Temperature |
-10 ℃ to +50 ℃ (14 ゜F to 122 ゜F) |
| Operating Humidity |
30 % to 85 %RH (no condensation) |
| Finish |
Resin, black |
- ราคาปกติ : 10,900.00 ฿
- ราคาพิเศษ : 9,270.00 ฿
-
|
| |
|
| |
|
|
|
