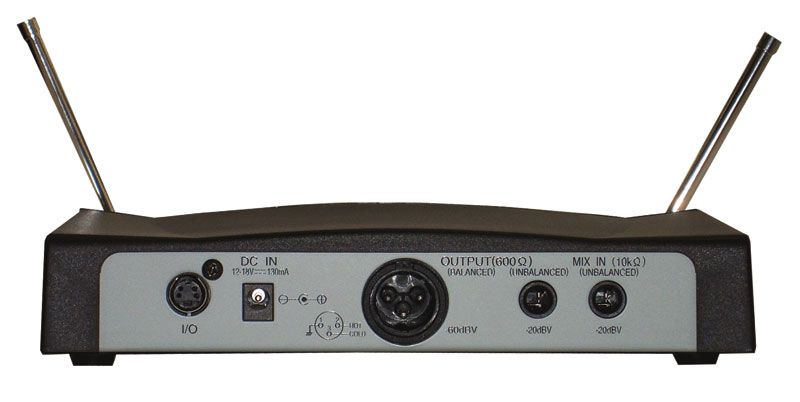

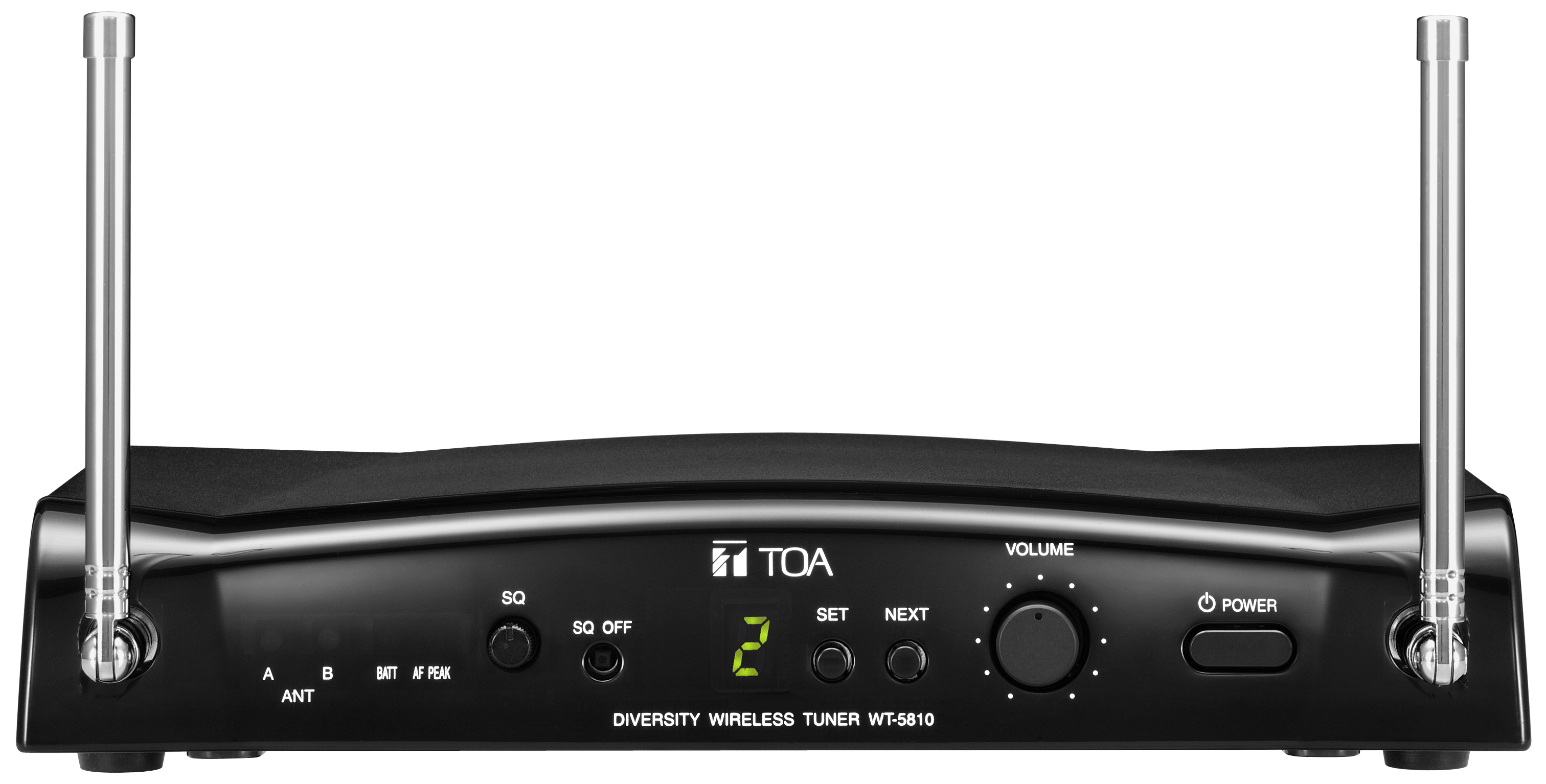

TOA WT-5810 UHF. Wireless Tuner
TOA WT-5810 UHF. Wireless Tuner
|
- ยี่ห้อ : TOA
- รุ่น : WT-5810
- The WT-5810 is a PLL-synthesizer controlled double superhetrodyne diversity tuner designed to be used with a UHF wireless system
| Power Source |
AC mains (supplied AC adapter must be used) |
| Power Consumption |
130 mA (12 V DC) |
| Receiving Frequency |
576 - 865 MHz (*2), UHF |
| Channel Selectable |
16 channels |
| Receiving System |
Double super-heterodyne |
| Diversity System |
Space diversity |
| Mixing Output |
MIC: -60 dB (*1), 600 Ω, balanced, XLR-3-32 type connector
LINE: -20 dB (*1), 600 Ω, unbalanced, phone jack |
| Mixing Input |
-20 dB (*1), 10 kΩ, unbalanced, phone jack |
| Antenna |
Whip antenna |
| Receiving Sensitivity |
90 dB or more, Signal to Noise ratio (20 dBμV input, 40 kHz deviation) |
| Squelch Sensitivity |
16 - 40 dBμV variable |
| Squelch System |
Using together of noise SQ, carrier SQ and tone SQ |
| Tone Frequency |
32.768 kHz |
| Indicator |
ANT A/B, Audio (peak), Battery alarm, Channel number |
| Channel Check |
Usable frequencies scanning |
| Signal to Noise Ratio |
104 dB or more (A-weight, unbalanced output) |
| Harmonic Distortion |
1 % or less (typical) |
| Frequency Response |
100 Hz - 15 kHz, ±3 dB |
| Operating Temperature |
-10 ℃ to +50 ℃ (14 ゜F to 122 ゜F) |
| Operating Humidity |
30 % to 85 %RH |
| Finish |
Resin, black |
ชุดนี้ไม่มีมี Tuner Unit
- ราคาปกติ : 7,770.00 ฿
- ราคาพิเศษ : 6,610.00 ฿
-
|
| |
|
| |
|
|
|
