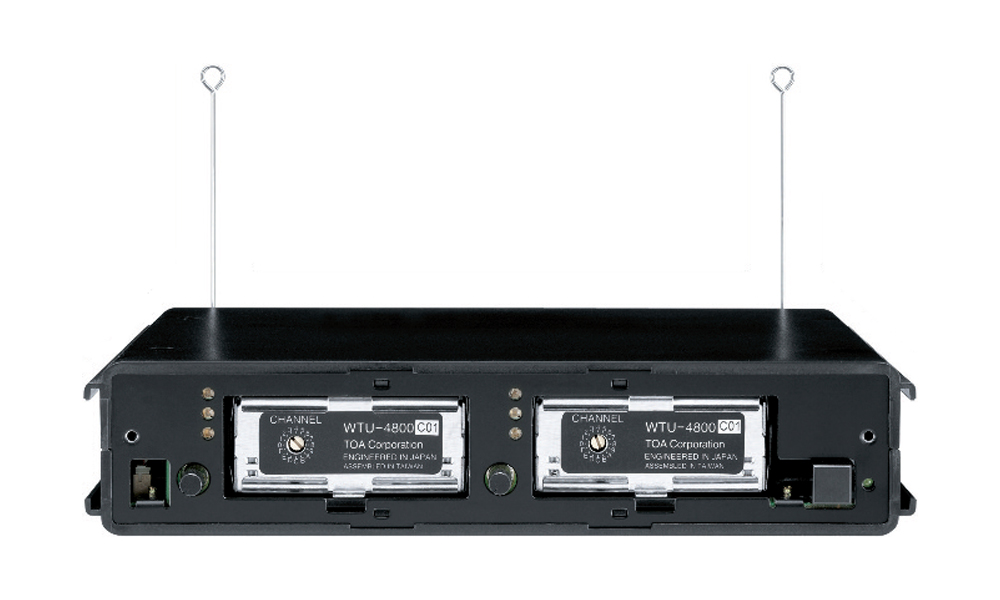

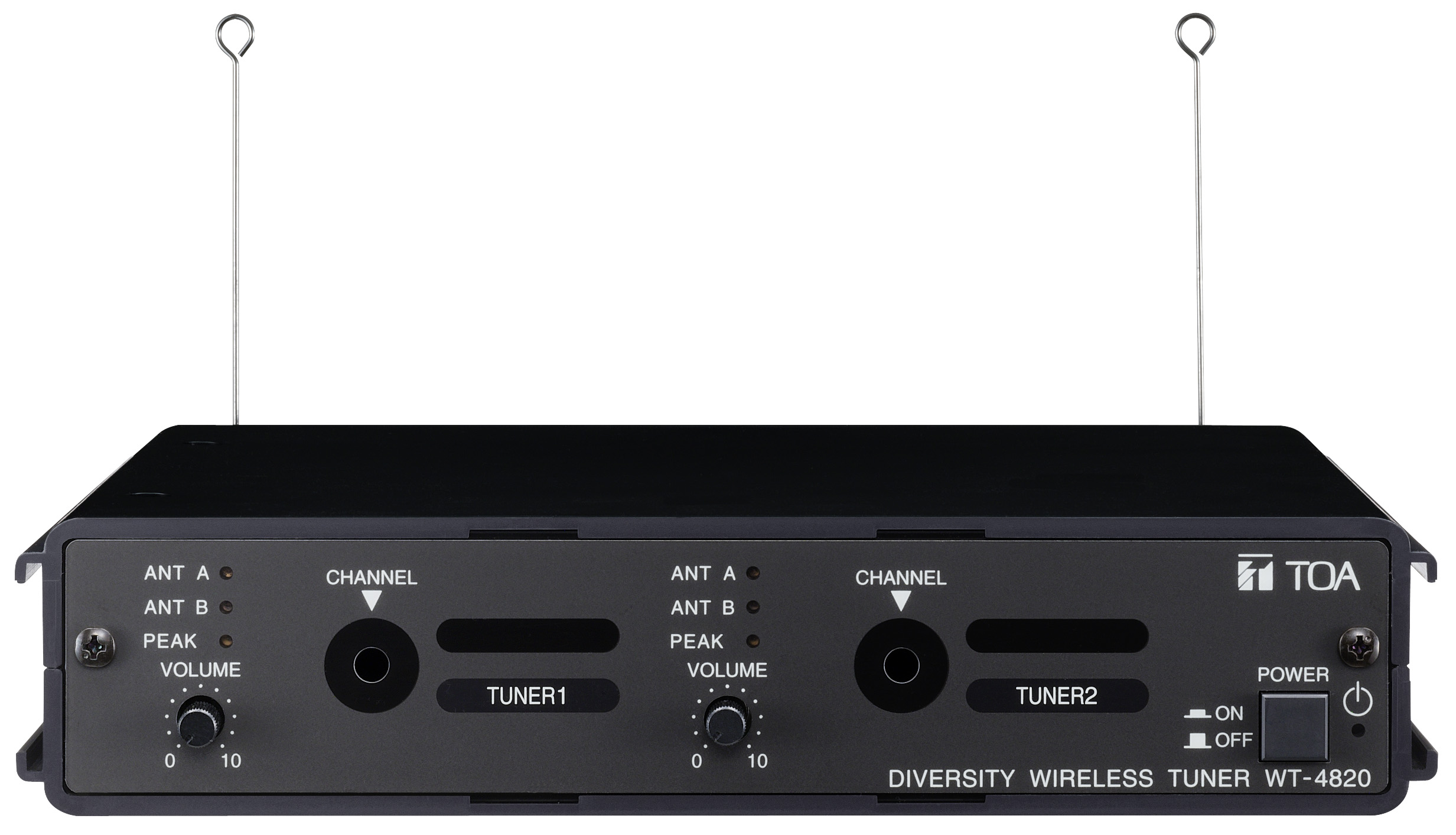

The TOA WT-4820 diversity tuner can accept up to two optional wireless tuner modules of UHF band (WTU-4800).
Power Source
AC mains (supplied AC adapter must be used)
Power Consumption
250 mA (12 V DC, when operating with two tuner modules)
Receiving Frequency
576 - 865 MHz (*3), UHF
Mixing Input
-20 dB(*1), 10 kΩ, unbalanced, phone jack
Audio Output
Mixing/Channel 1 (selectable):
-20 dB (*1) (+6 dB (*1) Max.), 600 Ω, unbalanced, phone jack
-14 dB (*1) (+12 dB (*1) Max.), 600 Ω, balanced, XLR-3-32 type connector
Channel 2: -20 dB (*1) (+6 dB (*1) Max.), 600 Ω, unbalanced, phone jack
Antenna Input
75 Ω, BNC (phantom powering for antenna), 9 V DC, 30 mA (max)
Antenna Output
75 Ω, BNC (Gain 0 dB)
Indicator
ANT A/B, Audio (peak), Power
Signal to Noise Ratio
102 dB or more (A-weight, balanced output)
Harmonic Distortion
1 % or less
Frequency Response
50 Hz - 18 kHz, ±3 dB
Operating Temperature
-10 ℃ to +50 ℃ (14 ゜F to 122 ゜F)
Operating Humidity
30 % to 85 %RH
Finish
Resin, black
ราคานี้ยังไม่รวม Wireless Tuner Unit ราคาชุดละ 6,460 บาท พิเศษเพียง 5,500บาท
