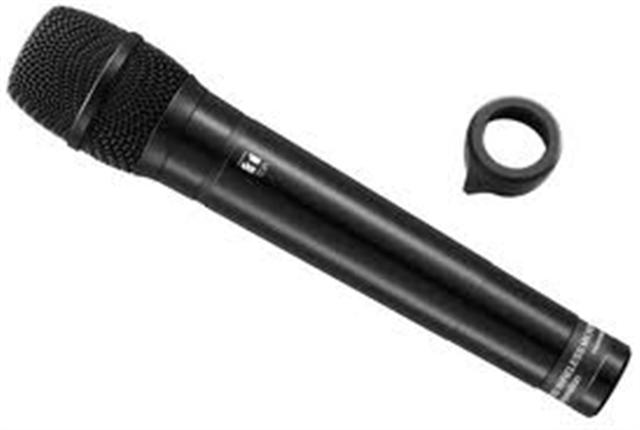

The WM-5270 Wireless Microphone employs a dynamic microphone capsule with high input handling capacity and is suitable for vocal application and other professional uses. Thanks to the PLL-synthesizer system, 16 different operating frequencies (4 banks) are made available.
Microphone Element Dynamic microphone unit: Unidirectional
Modulation Frequency modulation
Frequency Range 576 - 865 MHz*, UHF
Channel Selectable 64 channels (the number of channels may differ from country to country)
RF Carrier Power Less than 50 mW (Factory preset 10 mW ERP)
Tone Frequency 32.768 kHz
Oscillator PLL synthesized
Maximum Input Level 142 dB SPL
Maximum Deviation ±40 kHz
Audio Frequency Response 80 Hz - 15 kHz
Dynamic Range (AF Circuit) 95 dB or more (with WT-5800)
Battery AA alkaline dry cell battery
Battery Life Approx. 10 h (when the alkaline battery is used)
Indicator Power/Battery lamps
Antenna Built-in type
Operating Temperature -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F) (except battery)
Operating Humidity 30 % to 85 %RH (no condensation)
Finish Dark gray
Dimensions φ48 × 244 mm (φ1.89' × 9.61')
Weight 340 g (0.75 lb) (with battery)
