TOA WS-5325U UHF. Lavalier Wireless Microphone Set

เข้าชม 1790 | ตอบ 0
TOA WS-5325U UHF. Lavalier Wireless Microphone Set
  • ยี่ห้อ : TOA
  • รุ่น : WT-5325U

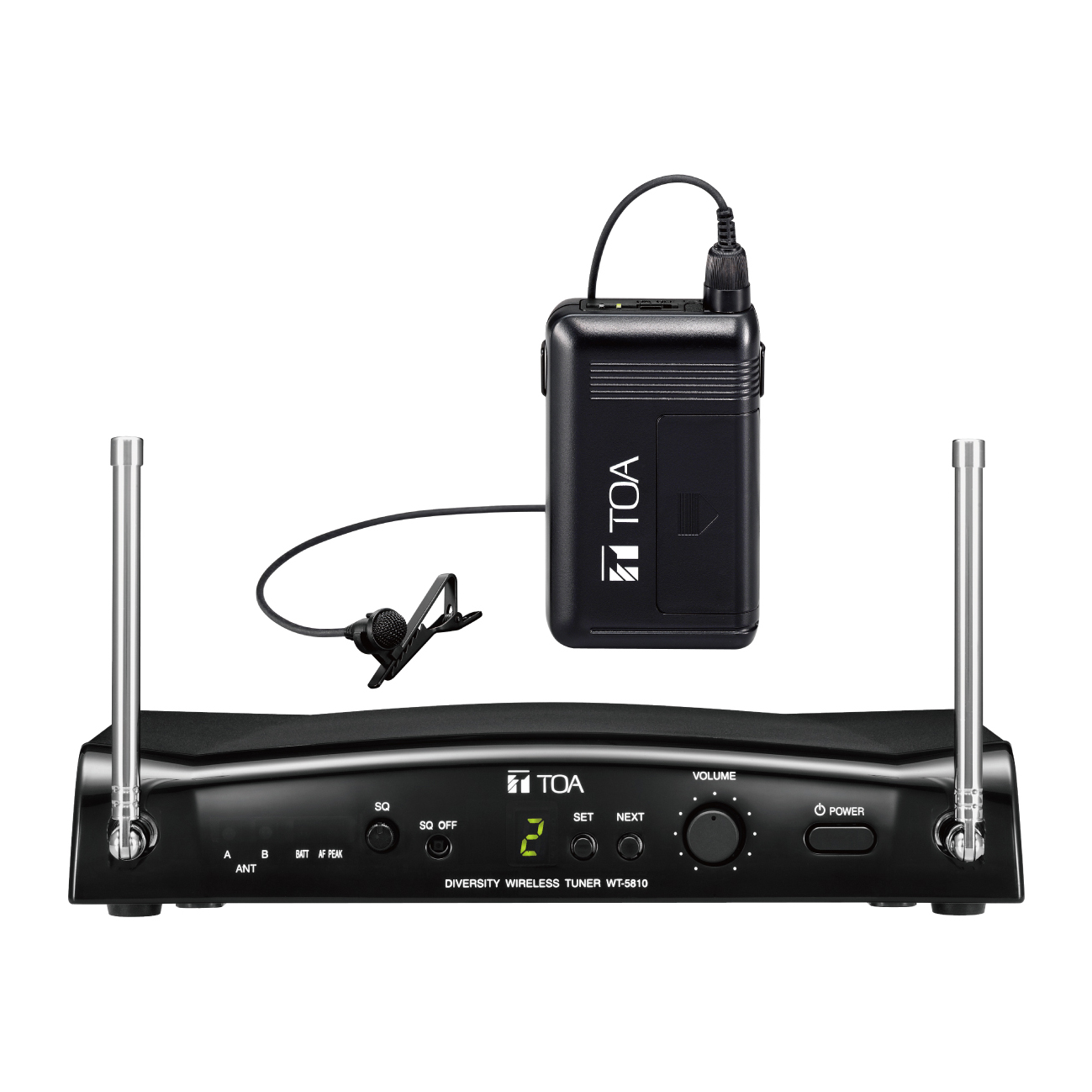

  • The WS-5325U includes a wireless transmitter WM-5325, a lavalier microphone YP-M5300, and a diversity wireless tuner WT-5810. The WM-5325 wireless transmitter has been manufactured for use with a UHF system. Thanks to the PLL-synthesizer system, 64 different operating frequencies are made available.
    Product Composition Wireless transmitter WM-5325 …1, Lavalier microphone YP-M5300 …1,
    Diversity wireless tuner WT-5810 …1
    Frequency Range 576 - 865 MHz (*1), UHF
    Tone Frequency 32.768 kHz
    Wireless transmitter
    Modulation Frequency modulation
    Channel Selectable 64 channels (the number of channels may differ from country to country)
    RF Carrier Power Less than 50 mW (Factory preset 10 mW ERP)
    Oscillator PLL synthesized
    Maximum Input Level -14 dB to -29 dB (*3) (Audio level control: Min. to Max.)
    Battery WB-2000 (WB-2000-2 contains 2 pieces) rechargeable battery (option) or
    AA alkaline dry cell battery
    Battery Life Approx. 13 h (when the WB-2000 rechargeable battery is used)
    Approx. 10 h (when the alkaline battery is used)
    Indicator Power/Battery lamps
    Antenna Built-in type
    Lavalier microphone
    Microphone Element Electret condenser type: Unidirectional
    Sensitivity -63 dB ±3 dB (0 dB = 1 V/0.1 Pa, 1 kHz)
    Cord Length 1.3 m (4.27
    Diversity wireless tuner
    Power Source AC mains (supplied AC adapter must be used)
    Power Consumption 130 mA (12 V DC)
    Channel Selectable 16 channels
    Receiving System Double super-heterodyne
    Diversity System Space diversity
    Mixing Output MIC: -60 dB (*3), 600 Ω, balanced, XLR-3-32 type connector
    LINE: -20 dB (*3), 600 Ω, unbalanced, phone jack
    Mixing Input -20 dB (*3), 10 kΩ, unbalanced, phone jack
    Antenna Whip antenna
    Receiving Sensitivity 90 dB or more, Signal to Noise ratio (20 dBμV input, 40 kHz deviation)
    Squelch Sensitivity 16 - 40 dBμV variable
    Squelch System Using together of noise SQ, carrier SQ and tone SQ
    Indicator ANT A/B, Audio (peak), Battery alarm, Channel number
    Channel Check Usable frequencies scanning
    Signal to Noise Ratio 104 dB or more (A-weight, unbalanced output)
    Harmonic Distortion 1 % or less (typical)
    Frequency Response 100 Hz - 15 kHz, ±3 dB





  • ราคาปกติ : 15,420.00 ฿
  • ราคาพิเศษ : 13,110.00 ฿
