JTS TG-10STX UHF.PLL True Diversity Receiver
JTS TG-10STX UHF.PLL True Diversity Receiver
|
- ยี่ห้อ : JTS
- รุ่น : TG-10STX

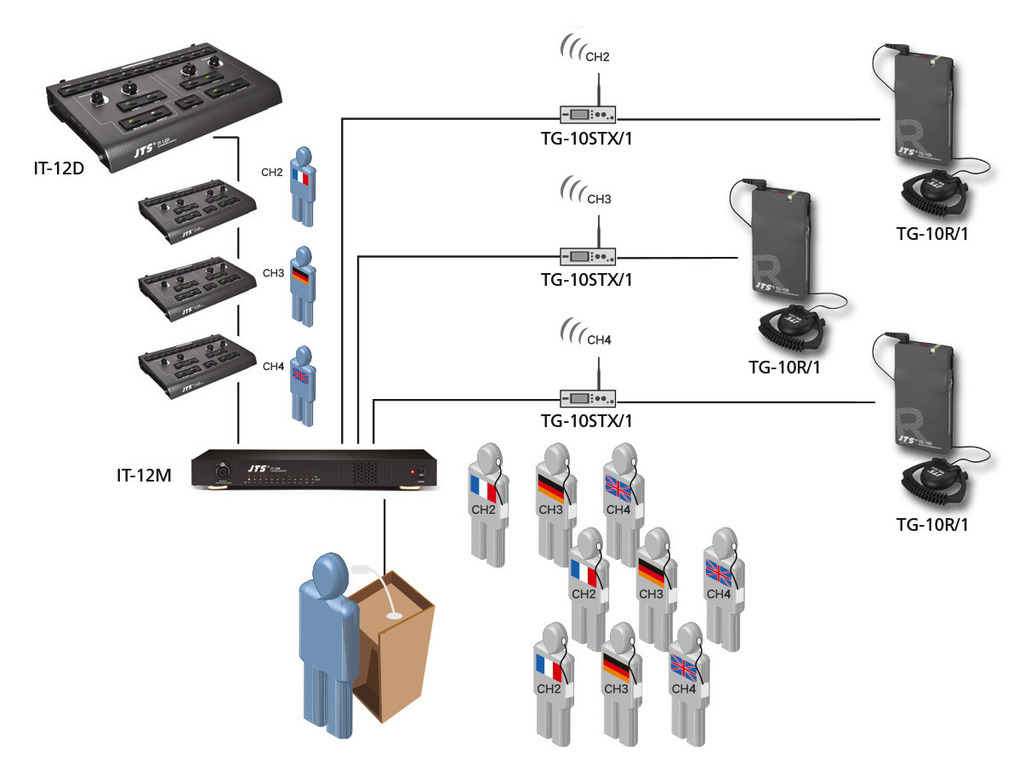

- This stationary transmitter TG-10STX provides an option for fixed installation to the TG-10.
TG-10STX
- Carrier Frequency Range 502~960MHz
- 3x Frequency Range
856.100 - 864.900 MHz (F band)
606.500 - 629.900 MHz (U band)
721.500 - 748.375 MHz (G band)
658.125 - 678.500 MHz (D band)
487.125 - 506.500 HHz (I band)
502.000 - 694.000 MHz (T band)
- RF Output Power Hi / Low
- Nominal Frequency Deviation
- (modulation) ±40KHz
- Audio Input Impedance 20KΩ
- Nominal Input Level -20 dBV
- Maximal Input Level 0 dBV
- LED Display AF Level, Channel
- Audio Input Connector 2 x Balanced XLR / Ø6.3mm Combo input
- Ø6.3mm monitor input
- Output Monitor Connector 1 x Ø3.5mm phone Socket
- Loop Out Connector 2 x Ø6.3mm Balanced Loop Out Socket
- Operation Voltage 12-18 VDC, 450 mA
- Dimension(m/m) 212mm (W)* 44mm (H)* 239mm (D)
- Channel 16 selectable channels
- ราคาปกติ : 14,600.00 ฿
- ราคาพิเศษ : 13,150.00 ฿
-
|
| |
|
| |
|
