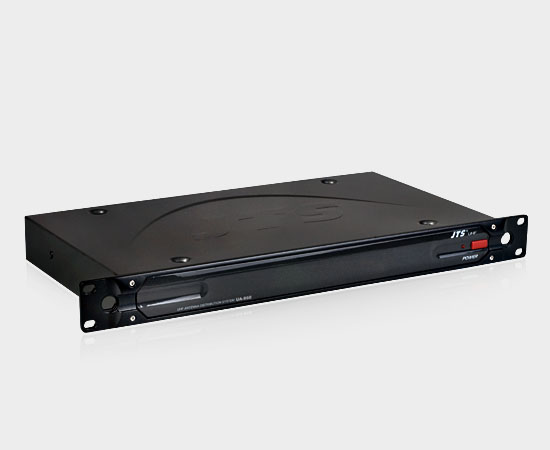

JTS UA-960 Antenna Distributor
JTS UA-960 Antenna Distributor
|
- ยี่ห้อ : JTS
- รุ่น : UA-960
- ตรวจสอบสินค้า/ราคาก่อนสั่งซื้อ AIS 081 829 2449 ค่าจัดส่งเริ่มต้น 100 บาท
The JTS UA-960 is a full range UHF antenna splitter that routes antenna signals from a pair of
antenna to several receivers in a multi-channel system. The UA-960 also amplifies the RF signals to compensate the loss incurred from splitting signal power. Bulit-in DC distribution provides four DC 12V power supply for receivers. A single UA-960 can support up to four wireless receiver. Multiple UA-960 can be cascaded for more wireless receivers. * 1 extra BNC socket that can be easily cascaded with another antenna distributor.
Frequency Range 470-960 MHz
RF Output Level(Gain) 3 dB ± 2
Cascade output level 0dB ~ +2dB
Output Connection Isolation ≥ 25 dB
Third Order Intercept Point 24 dBm
Impedance 50 Ohm
Power Consumption 60W
Input AC Voltage 100 ~ 240 V switching power
Output DC Voltage +12V ---1A x 4
Antenna Booster DC Voltage 12V
Dimension 480(W)*45(H)*250(D) mm(standard
19' and 1 U case)
Net Weight 2.15 Kgs
- ราคาปกติ : 20,900.00 ฿
- ราคาพิเศษ : 19,700.00 ฿
-
|
| |
|
| |
|
