TOA TS-D1000-CU Y ไมค์ประชุมประธาน (Chairman Unit)
เข้าชม 1128
| ตอบ 0
TOA TS-D1000-CU Y ไมค์ประชุมประธาน (Chairman Unit)
ยี่ห้อ : TOA
รุ่น : TS-D1000-CU Y

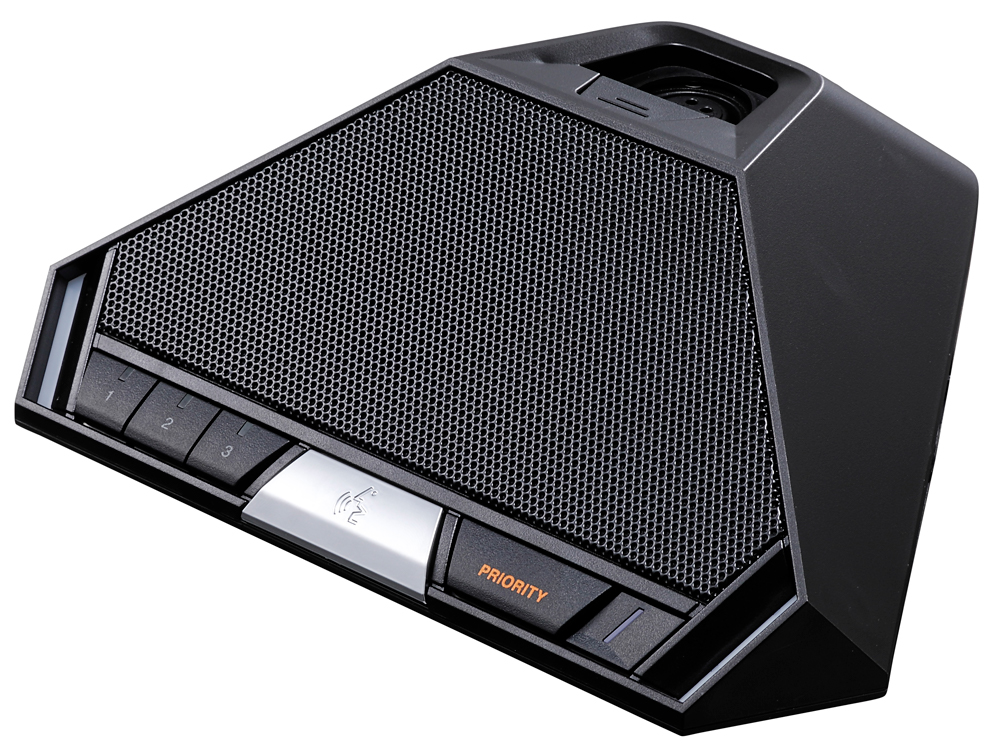

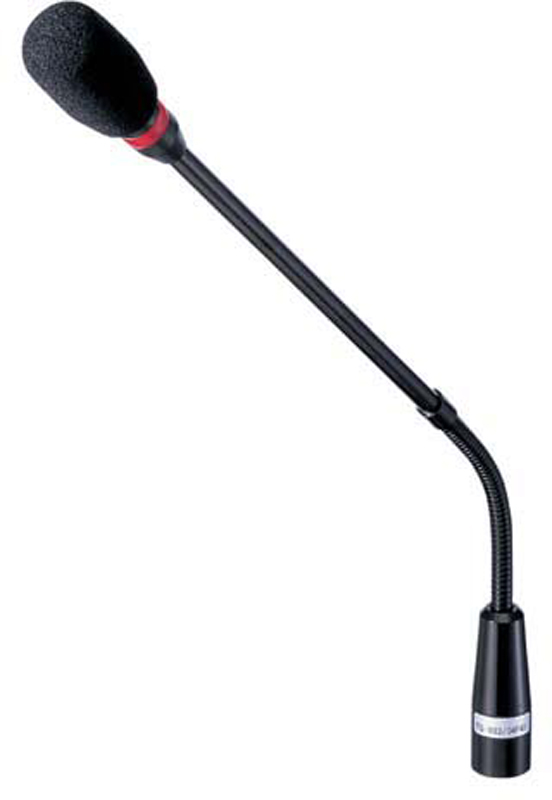

The Digital conference system's dedicated TS-D1000-CU Chairman unit can be instantly used by simply connecting it to the TS-D1000-MU Master control unit using CAT5e STP LAN cables. It can also be optionally equipped with either the TS-D1000-M1 Standard microphone or the TS-D1000-M2 Long microphone.
Power Source
24 V DC (supplied from the TS-D1000-MU Master control units (option), TS-D1000-SU Sub control units (option) or
TS-D1000-EX Extension units (option))
Power Consumption
1.5 W or less
Input
Microphone terminal: XLR-3-31 type
Output
Monitor speaker: 8 Ω, 0.4 W
Earphone: φ3.5 mm mini Jack (3P:monaural) ×2
Connecting Terminal
RJ45 connector ×2
LED Indicator
Power indicator, Speech indicator
Function
Speech function, Priority speech function, Earphone volume control (×2)
Operating Temperature
0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
Operating Humidity
90 %RH or less (no condensation)
Finish
Case: ABS resin, black, mat finish, paint
Speaker net: Steel plate, black, mat finish, paint
