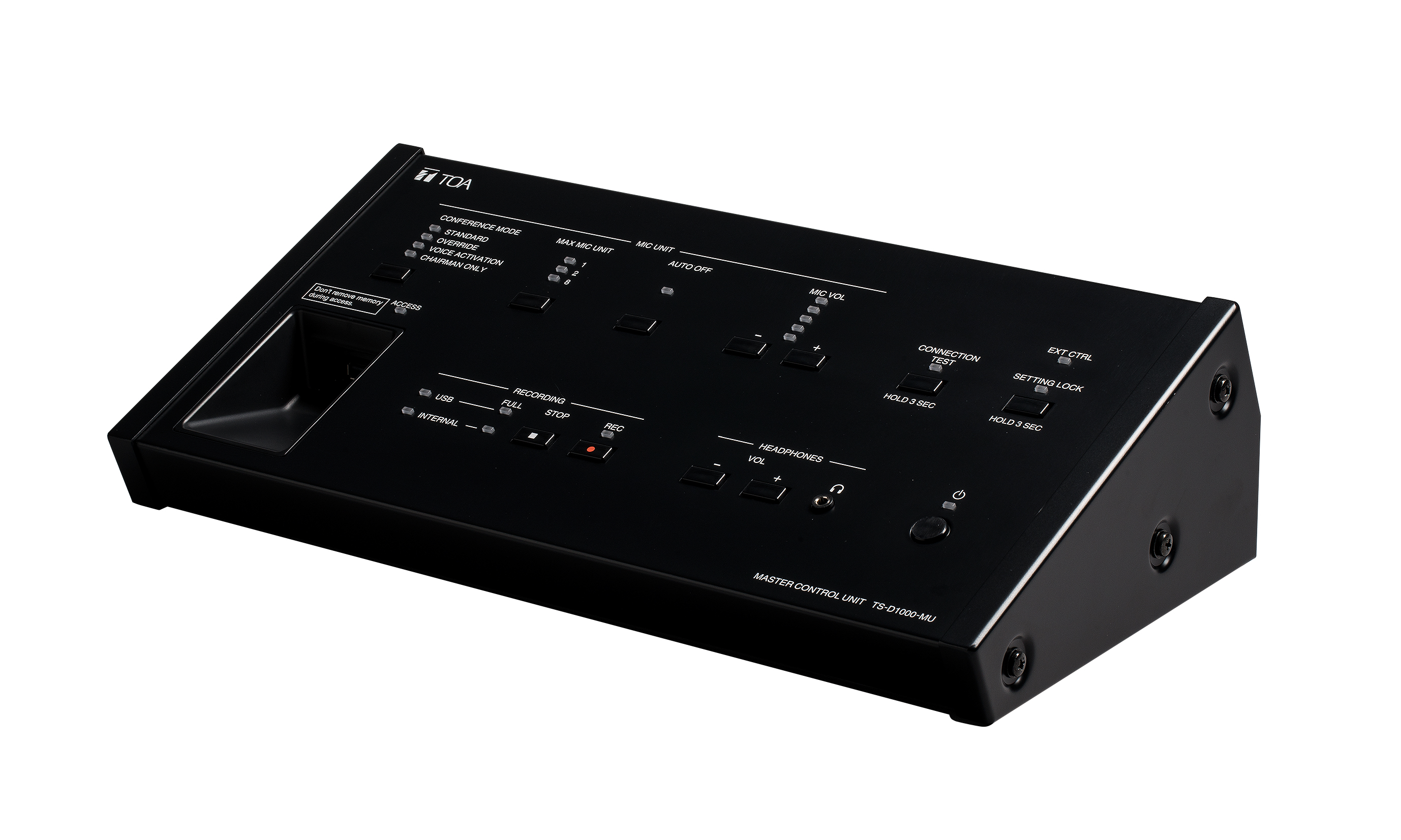

TOA TS-D1000-MU 1CE เครื่องจ่ายไฟและควบคุมไมค์ประชุมดิจิตอล(Master control unit )
ยี่ห้อ : TOA
รุ่น : TS-D1000-MU 1CE
The TS-D1000-MU Master control unit for TOA's Digital conference system is designed to be used by way of simple connections to its Chairman and Delegate units using CAT5e STP LAN cables. The Master control unit is also equipped with a recording function, PC control (*1), and one-touch connection confirmation capability. Up to 32 Chairman/Delegate units can be connected in a simple daisy chain configuration.
The TS-D1000-MU is also equipped with FBS (Feedback Suppression), enabling effective control of acoustic feedback. In addition the unit employs an MP3 recorder that makes it possible to record all conference contents to either a connected USB memory drive or internal memory.
ower Source
100 - 240 V AC, 50/60 Hz (use of the supplied AC adapter)
Power Consumption
60 W or less
Audio Transmission System
Time division multiplexing (TDM), 10 channels
16-bit PCM, 32 kHz sampling frequency
MIC Input
-54 dB (*2), 600 Ω, unbalance, φ6.3 mm phone jack (2P)
Output
LINE: -10 dB (*2), 10 kΩ, unbalance, φ6.3 mm phone jack (2P)
REC: -10 dB (*2), 10 kΩ, unbalance, RCA pin jack, monaural
HEADPHONES: φ3.5 mm mini jack, monaural
EQ Insert Input/Output Terminal
-10 dB (*2), 10 kΩ, unbalance, RCA pin jack
Video Conference systemInput/Output Terminal
-10 dB (*2), 10 kΩ, unbalance, RCA pin jack
Number of Connectable Chairman/Delegate Units
32 units
Number of Connectable Sub Control Units
5 units
Maximum Cable Distance
50 m (164.04 ft) (between Master control unit and terminal Chairman/Delegate unit at end of daisy chain) (*3)
1 m (3.28 ft) (between Master control unit and Sub control units)
(Use the cable supplied with the Sub control unit.)
Maximum Number of Open Microphones
2 chairman units, 8 delegate units
Chairman/Delegate Units Terminal
RJ45 connector ×2
Sub Control Units Terminal
RJ45 connector
LED Indicator
Power indicator, Conference mode indicator, Number of open microphones indicators, Microphone auto off indicator, Monitor speaker of conference units volume indicators, Connection test indicator, External control indicator, Setting lock indicator, Recording status indicator, USB Access status indicator, USB memory status indicator, Internal memory status indicator, Remaining USB memory capacity warning indicator, Remaining internal memory capacity warning indicator, LINK/ACT indicator, 10BASE-T/100BASE-TX indicator
Function Key
Conference mode selector key: Standard/Override/Voice activation/Chairman Only
Number of open microphones selector key: 1/2/8
Microphone auto off setting key: ON/OFF
Monitor speaker of conference units volume setting key: -,+
Setting lock key: ON/OFF
Headphone volume setting key: -,+
Operation Key
Connection test, Rec start, Rec stop
Recording Ports
USB-A
Recording Function
Recordings can be made to a USB memory device (*4) or the internal memory.
Recording format: MP3 (MPEG-1 Audio Layer-3), monaural
Sampling frequency: 32 kHz, Bit rate: 128 kbps
