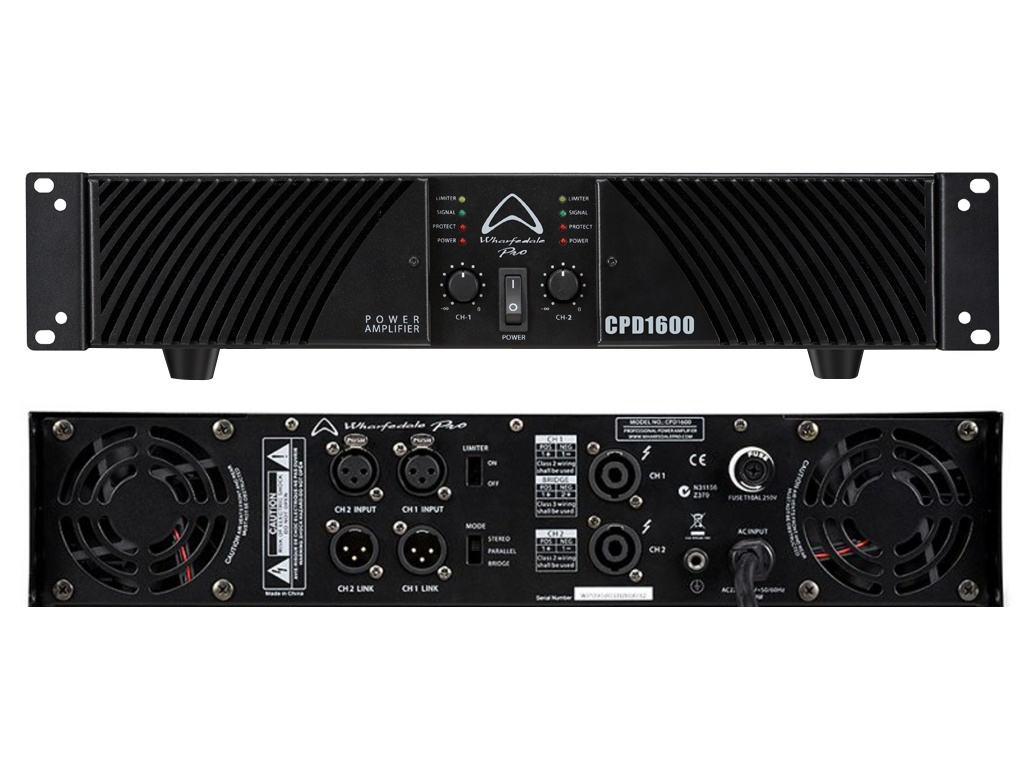

The CPD1600 is part of Wharfedale Pro’s latest line of professional power amplifiers driving earth shaking audio from the front of your venue, all the way to the back.For using in stereo the amplifier delivers 400W RMS per channel at 8 Ohms and 650W RMS per channel at 4 Ohms; a suitable power for small to medium sized complete PA systems. In bridged mode at 4 Ohms the amplifier generates 1600W RMS, perfect for powering a subwoofer integrated into a larger PA system for example.
8 Ohms x 2
400W RMS
4 Ohms x 2
620W RMS
Bridged Mono Output
8 Ohms
1200W RMS
4 Ohms
1600W RMS
Inputs
2 x XLR
Outputs
2 x XLR, 2 x Speakon
Frequency Response
20Hz - 30KHz
Topology
Class AB
Sensitivity
0dBu (0.775Vrms)
Input Impedance
20K Ohms
Maximum Input Level
22dBu (9.7Vrms)
Slew Rate
>40V / us
Crosstalk
<-70dB
Signal to Noise
>100dB
Protection
Switchable Limiter, Thermal protect, Over-current protect, Output DC protect, Output short protect, Power on/off mute
