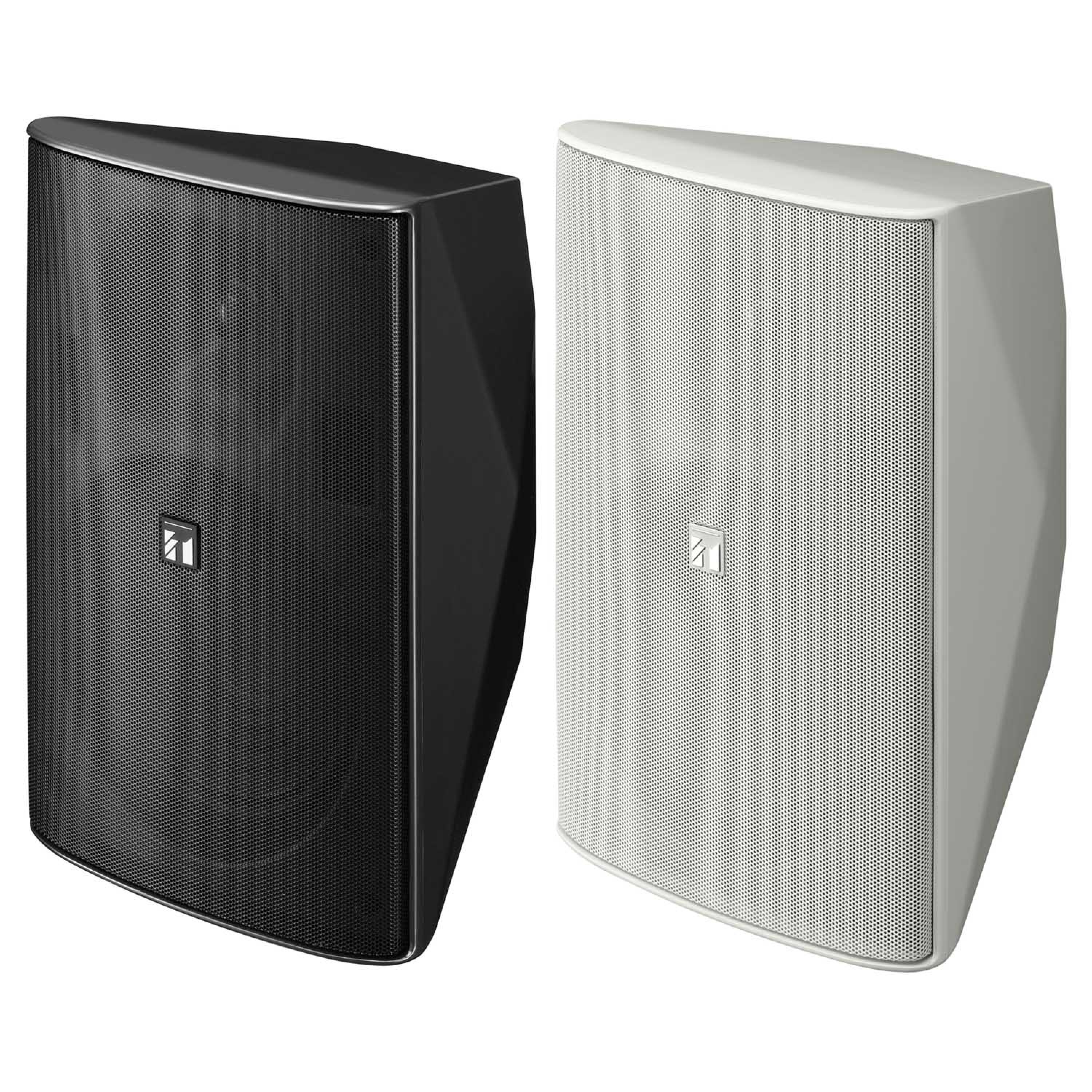

TOA F-2000BT Wide-dispersion Speaker 60-180 w. ราคาต่อใบ
TOA F-2000BT Wide-dispersion Speaker 60-180 w. ราคาต่อใบ
|
- ยี่ห้อ : TOA
- รุ่น : F-2000BT
- The F-2000 Series Speaker are compact two-way speaker systems designed for high efficiency, wide range, and high power input handling capability.
| Enclosure |
Bass-reflex type |
| Rated Input |
60 W (high impedance) |
| Power Handling Capacity |
Continuos pink noise: 60 W (low impedance)
Continuos program: 180 W (low impedance) |
| Rated Impedance |
8 Ω
100 V line: 170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W), 3.3 kΩ (3 W)
70 V line: 83 Ω (60 W), 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W), 3.3 kΩ (1.5 W) |
| Sensitivity |
92 dB (1 W, 1 m) at installation in 1/2 free sound field
93 dB (1 W, 1 m) at installation in 1/2 free sound field (with horn adapter) |
| Frequency Response |
65 Hz - 20 kHz, -10 dB at installation in 1/2 free sound field |
| Crossover Frequency |
2.5 kHz |
| Directivity Angle |
Horizontal: 110゜, Vertical: 100゜
Horizontal: 80゜, Vertical: 80゜ (with horn adapter) |
| Speaker Component |
Low frequency: 20 cm (8') cone-type
High frequency: 25 mm (1') dome tweeter |
| Input Terminal |
Push-in terminal |
| Finish |
Enclosure: HIPS, black
Punched net: Surface-treated steel plate, black, paint
Joint bracket, wall bracket: Steel plate, t2.0, black, paint
Speaker bracket: Die-cast aluminum, black, paint |
| Dimensions |
244 (W) × 373 (H) × 235 (D) mm (9.61' × 14.69' × 9.25') |
| Weight |
7.4 kg (16.31 lb) (including the supplied brackets) |
| Accessory |
Speaker bracket…1, Joint bracket…1, Wall bracket…1,
Bracket fixing screw…1 set, Horn adapter…1, Horn adapter mounting screw…4 |
| Option |
Ceiling mount bracket: HY-CM20B (used for the horizontal speaker mounting), |
ราคาต่อใบ ไม่รวมค่าจัดส่ง/ภาษี ตรวจสอบสินค้า AIS 081 829 2449
- ราคาปกติ : 9,400.00 ฿
- ราคาพิเศษ : 7,990.00 ฿
-
|
| |
|
| |
|
|
|
