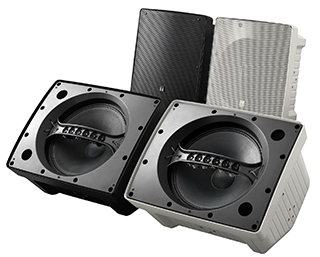

TOA HS-120B Coaxial Array Speaker 100-300 w. มีสีดำ สีขาวให้เลือกใช้
เข้าชม 1338
| ตอบ 0
TOA HS-120B Coaxial Array Speaker 100-300 w. มีสีดำ สีขาวให้เลือกใช้
ยี่ห้อ : TOA
รุ่น : HS-120
TOA HS-Series speakers are equipped with narrow-directivity control (90° horizontal × 40° vertical). This useful feature allows tailoring the speaker's dispersion characteristics to better suit the acoustic environment in which it is installed. The versatile HS-Series is compatible for use with 100V/70V lines for distributed applications.
Enclosure
Sealed type
Power Handling Capacity
Continuous pink noise: 100 W
Continuous program: 300 W
Rated Impedance
8 Ω
Sensitivity
97 dB (1 W, 1 m)
Frequency Response
80 - 20,000 Hz
Crossover Frequency
3 kHz
Directivity Angle
Horizontal: 90゜, Vertical: 40゜
Speaker Component
Low frequency: 30 cm (12) cone-type'
High frequency: Balanced dome tweeter × 6
Input Terminal
NEUTRIK NL4MP Speakon and M4 screw terminal, distance between barriers: 9 mm (0.35)'
Operating Temperature
-10℃ to +50℃ (14゜F to 122゜F)
Finish
Enclosure: Polypropylene, black
Punched net: Surface-treated steel plate, black
