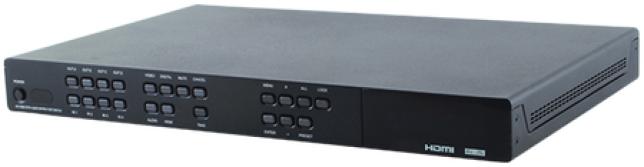

CYP CDPS-U4H4HSA 4K UHD 4×4 HDMI Matrix with Audio Matrixing
ยี่ห้อ : CYP
รุ่น : CDPS-U4H4HSA
The 4 by 4 HDMI matrix with audio which allows HDMI and audio signal to be routed to and displayed on connected HDMI displays and or audio output equipments simultaneously. Additional audio selection and extension allows users to utilize both video and audio more efficiency. With fast switching technology the device can greatly eliminate the time required by swapping or turning ON/OFF the connected displays. It supports 4K2K, 3D, 36-bit Deep Color, Hi-Def lossless audio and other features defined by HDMI specifications. The management of source/sink scenarios can be operated easily through on-panel buttons, IR remote control, RS-232 or Ethernet protocol.
HDMI with 3D & 4Kx2K supported, HDCP and DVI compliant
Supports four HDMI inputs and four HDMI outputs
Supports external audio inputs and outputs for HDMI outputs selection and additional audio extension up to 300 meters
Supports HDMI and Optical audio format for both HDMI and Optical outputs selection
Support individual output MUTE function on both video and audio
Displays any of four High-Definition sources on four HDTV displays simultaneously with fast switch
3D pass-through
Supports HDTV resolutions up to 4Kx2K (3840x2160@24/25/30 & 50/60 Y420 4096x2160@24 & 50/60Hz Y420)
Supports data rate up to 300Mbps or 9Gbps and Deep Color up to 1080p 36-bit
Supports individual EDID or common EDID
Supports LPCM 2CH with sampling up to 192kHz
Input port HDCP support Standard and Apple mode (The Apple mode selection to guarantees the use of Apple devices)
