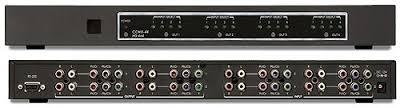

A high performance Component + L/R Audio Matrix with remote control (4 Input, 4 Output). It offers you maximum convenience in HDTV audio/video signal distribution when you have multiple sources and displays to connect together.

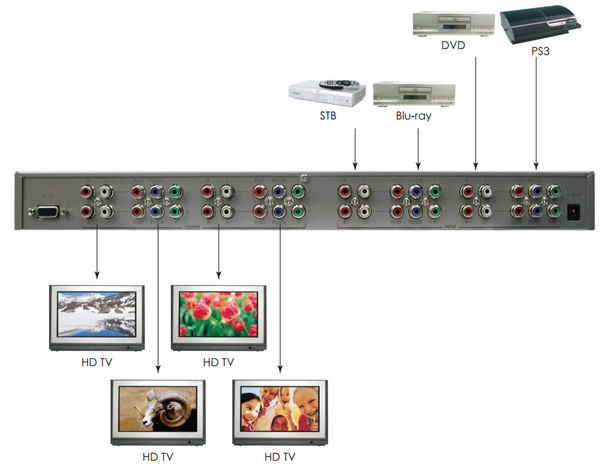

Each of the four HDTV audio/video sources can be directed to any one of the four outputs, so four displays can show 4 identical or 4 different sources at the same time. CCMX-44 provides a maximum of 16 possible connection scenarios between sources and displays.
Provides 4 by 4 matrix input/output of Component (YPbPr/YCbCr) video and L/R audio signal.
Buffered video and audio output.
Input source LED indicators on each output select.
Ideal for home theater integration, conference room and retail stores.
Supports high resolution input/output: HDTV: 480i, 576i, 480p, 576p, 1080i, and 1080p
Supports analog stereo L/R audio input and output.
IR remote control.
RS-232 control.
video inputs 4 x Component (YUV), 4 x L/R Audio (RCA jack)
video outputs 4 x Component (YUV), 4 x L/R Audio (RCA jack)
Power 12V DC. power supply
Dimensions 436 (w) x 120 (d) x 44 (h) mm
Weight 1.6 Kgs
