กล่องแยก-ขยายสัญญาณเข้า 1 ออก 2 แบบ HDMI ขยายสัญญาณได้ไกลถึง 30 ม. มีวงจรขยายและชดเชยสัญญาณภาพที่สูญเสีย รองรับความละเอียด 1080p@60Hz (12bit) รองรับการเข้ารหัส Full HDCP พร้อมเสียงระบบดิจิตอล ใช้งานร่วมกับหัวแปลง DVI เป็น HDMI ได้
The HDMI v1.3 Distribution Amplifier Series is the most advanced solution to HDMI signal distribution. Each product in this series is compatible with HDMI v1.3 specifications, a cutting-edge technology which defines the supports to transfer Deep Color (10-bit and 12-bit) video and new lossless compressed (LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio, with a high bandwidth up to 225 MHz (6.75 Gbps). Besides splitting and distributing, the HDMI v1.3 DA series also does signal amplification and equalization, so as to provide high performance I/O of audio and video.
HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant
Deep Color video up to 12-bit, 1080p@24/60 Hz

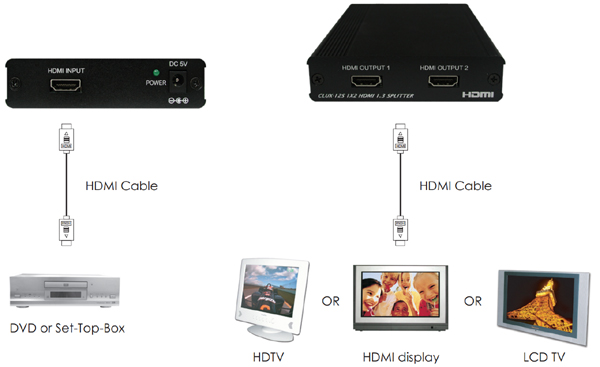

One HDMI source to connect up to two HDMI displays simultaneously
HDCP keysets allows each output to work independently when connecting to a HDMI display
Splits a HDMI source up to two outputs without signal loss
Supports DVI source and DVI display by using HDMI to/from DVI adaptor cable
Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission (32-192 kHz Fs sample rate)
Supports a wide range of PC and HDTV resolutions from VGA to UXGA and 480i to 1080p
HDMI cable distance test with 1080p/8-bit resolution, the Input/Output source can run up to 20/15 meters. If 1080p/12-bit the Input/Output source can run up to 15/10 meters
Supports EDID functionality. The unit will detect the first HDMI v1.2/8-bit, HDMI v1.3 (10/12-bit) or DVI output source’s EDID and record in the unit
When the output sources connected with the entire combination version (HDMI v1.2/8-bit, v1.3/10-bit, v1.3/12-bit or DVI), the system can automatically to supports HDMI v1.2/8-bit, v1.3/10-bit, v1.3/12-bit or DVI to expect ports
Supports CEC bypass
NOTE: THE DETECTION PRIORITY IS HDMI V1.3 > HDMI V1.2 > DVI.
SPECIFICATIONS
Frequency Bandwidth : 2.25Gbps (single link)
Input Port : 1x HDMI female port (Type A connector)
Output Ports : 2x HDMI female ports (signal link)
Power Supply : 5VDC/2.6A (US/EU standards, CE/FCC/UL, certified)
