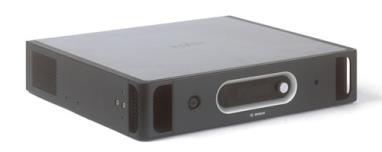

Bosch DCN‑CCU2 Central Control Unit
Bosch DCN‑CCU2 Central Control Unit
|
- ยี่ห้อ : Bosch
- รุ่น : DCN-CCU2
- For DCN Next Generation or DCN wireless systems, or a combination of the two
- In single‑CCU; maximum 245 wired contribution units, plus 245 wireless delegate units
- For multi‑CCU systems, with up to 30 CCU’s and a total of 4000 contribution units
- Voice activated microphone mode for wired and wireless systems
- Ethernet connection for configuration and control computers
- Supply voltage 100‑240 Vac 50‑60 Hz
- Power consumption 360 W
- DCN system supply 40 Vdc, max 85 W per DCN socket
- Optical network supply 40 Vdc, max 65 W
- Total power supply 320 W
- RS‑232 connection 1 x nine‑pole Sub‑D female socket
- Frequency response 30 Hz - 20 kHz (-3 dB at nominal level)
- THD at nominal level < 0.5 %
- Cross talk attenuation > 85 dB at 1 kHz
- Dynamic range > 90 dB
- Signal-to-noise ratio > 87 dBA
- XLR nominal input -12 dBV (+/- 6 dB)
- XLR maximum input +12 dBV
- Cinch nominal input -24 dBV (+/- 6 dB)
- Cinch maximum input +0 dBV
- XLR nominal output -12 dBV (+6 / -24 dB)
- XLR maximum output +12 dBV
- Cinch nominal output -24 dBV (+6 / -24 dB)
- Cinch maximum output +0 dBV
- Mounting Tabletop or mounted in a 19” rack
- Dimensions (H x W x D)
- for tabletop use, with feet 92 x 440 x 400 mm(3.6 x 17.3 x 15.7 in)
- for 19” rack use, with brackets 88 x 483 x 400 mm(3.5 x 19 x 15.7 in)
- ราคาปกติ : 239,000.00 ฿
- ราคาพิเศษ : 215,000.00 ฿
-
|
| |
|
| |
|
|
|
