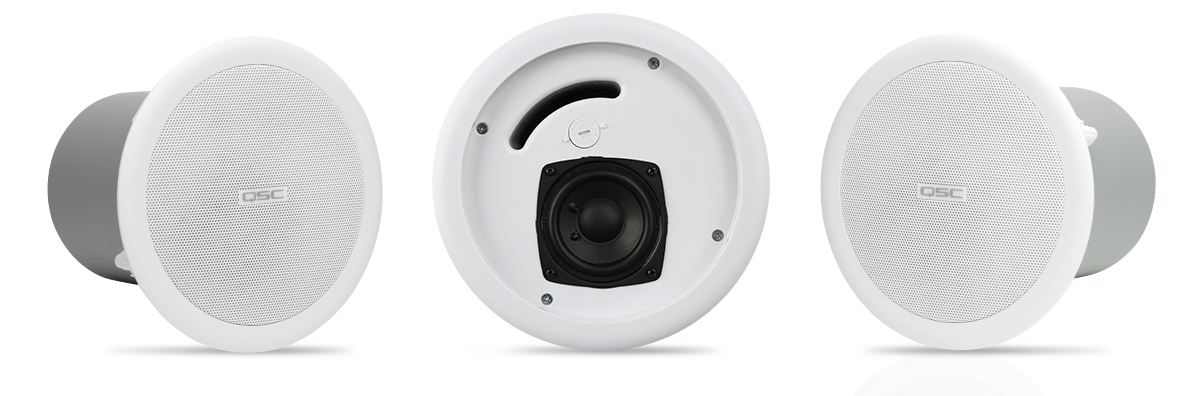

QSC AC-C2T 2.75-inch Full-range, 170° conical Ceiling speaker 16 w.
QSC AC-C2T 2.75-inch Full-range, 170° conical Ceiling speaker 16 w.
|
- ยี่ห้อ : QSC
- รุ่น : AC-C2T
- High quality 2.75-inch full-range transducer provides exceptional clarity through the critical voice range.
- Low-saturation 70V/100V transformers with 8-ohm bypass.
- 4-pole Euroblock connector for easy system wiring.
- Advanced voicing filter sets using QSC Intrinsic Correction™ are available through either Q-SYS processing or CXD amplifier platforms.
- White (RAL 9010) with UV inhibitors to match complementing QSC product families.
- Complete EASE, CAD, and BIM information available online.
Specifications AC-C2T
- Effective frequency range 70 Hz to 20 kHz
- Rated noise power / voltage 16 watts / 11.3 volts (rms)
- Broad-band sensitivity 84 dB
- Coverage angle (-6 dB) 170° (500 Hz to 5 kHz)
- Maximum continuous SPL 96 dB
- Maximum peak SPL 102 dB
- Rated impedance 8 ohms
- Transformer taps:
- 70 V 16, 8, 4, 2, 1 watts and 8-ohm bypass
- 100V 16, 8, 4, 2, watts and 8-ohm bypass
- Transducer 2.75-inch treated paper cone with rubber surround
- Input connector type Euroblock connector with parallel output terminals
- Baffle material Painted ABS polymer
- Grille material Powder coated steel
- Back can material Powder coated steel
- Testing Listed UL1480, UL2043 safe for use in air handling space
- Net weight 4.2 lb / 1.9 kg
- Product dimensions 8.4-inch × 7.9-inch (214 × 201 mm)
- ราคาปกติ : 4,100.00 ฿
- ราคาพิเศษ : 3,690.00 ฿
-
|
| |
|
| |
|
|
|
