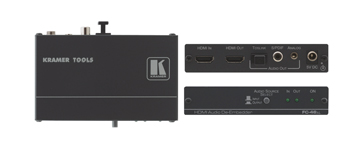

The FC-46xl is a high-performance HDMI audio de-embedder. The unit can de-embed audio from the HDMI input or from the HDMI output Audio Return channel to S/PDIF, TOSLINK® and analog audio outputs simultaneously. - เครื่องแยกเสียงออกจากสัญญาน HDMI ให้ควบคุมเสียงได้อิสระ
INPUT:
1 HDMI connector.
OUTPUTS:
1 HDMI connector, 1 TOSLINK® optical digital audio connector, 1 S/PDIF digital audio on an RCA connector, 1 unbalanced stereo audio on a 3.5mm mini connector.
MAX. DATA RATE:
Supports up to 6.75 Gbps (2.25Gbps per graphic channel), 1080p @60Hz, 36−bit Deep Color.
COMPLIANCE WITH STANDARDS:
Supports HDMI, HDCP 1.4.
CONTROLS:
Audio source select button.
INDICATOR LEDS:
ON, IN, OUT.
POWER CONSUMPTION:
5V DC, 600mA.
DIMENSIONS:
12.4cm x 7cm x 2.4cm (4.9' x 2.8' x 0.94') W, D, H.
