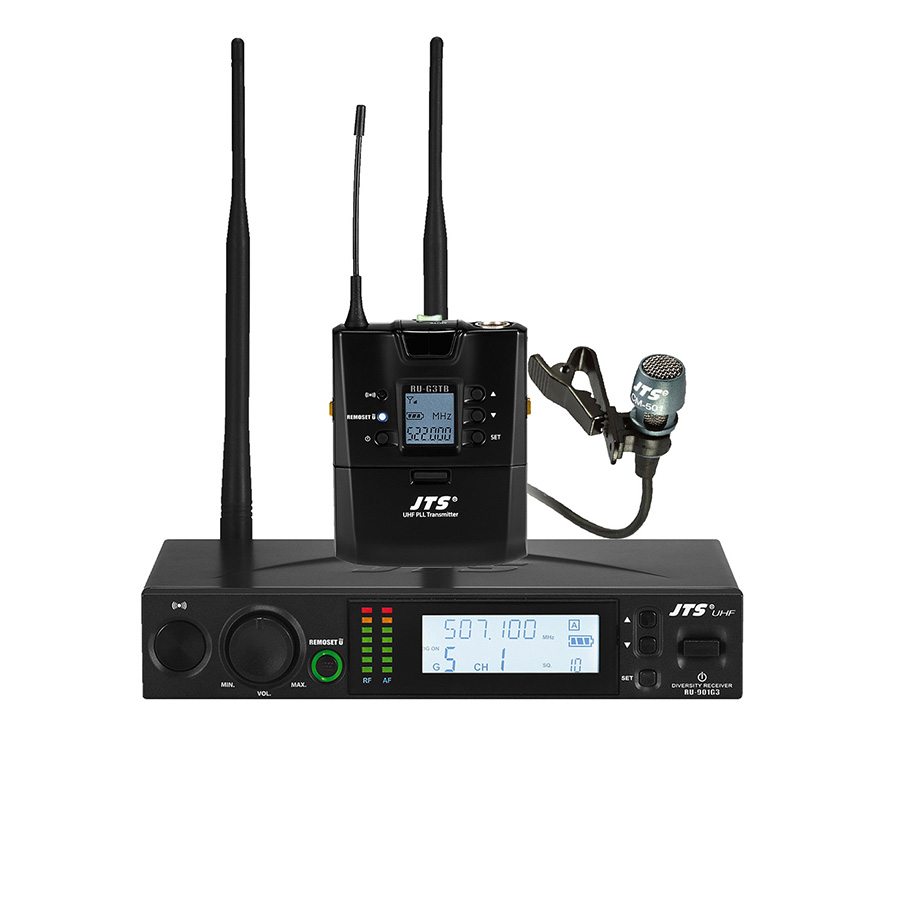

JTS RU-901G3/RU-G3TB UHF PLL Body-Pack Transmitter with Lavaliere Microphone
JTS RU-901G3/RU-G3TB UHF PLL Body-Pack Transmitter with Lavaliere Microphone
|
- ยี่ห้อ : JTS
- รุ่น : RU-901G3/RU-G3TB
RU-901G3 / RU-901G3T
- Frequency PreparationPLL Synthesized Control
- Carrier Frequency Range UHF 470~960 MHz
- 3x Frequency range 856.100 - 864.900 MHz (F band)
606.500 - 629.900 MHz (U band)
721.500 - 748.375 MHz (G band)
658.125 - 678.500 MHz (D band)
487.125 - 506.500 MHz (I band)
502.000 - 694.000 MHz (T band)
- Frequency Setting Remoset U Ultrasonic
- Receiving Mode True Diversity
- Bandwidth 36MHz
- S/N Ratio > 105dB
- T.H.D <0.6% @ 1KHz
- Sensitivity -95dBm, S/N>80dB
- CMRR >80 dB
- Audio Frequency Response 50Hz~18KHz±2dB
- Antenna BNC (F)
- Antenna Bosster Power DC12~15V/100mA
- Display LCD
- Display Contents Group, Channel, Frequency, Battery Status, Antenna A/B, AF Meter(LED BAR), RF Meter (LED BAR)
- Controls Power ON/OFF, Group, Channel, Frequency, Audio Level, Lock-on, Volume, Output Pad, Frequency Scan (ON/OFF)
- Audio Output Level Ref:±22.5KHz Dev@1KHz Toneψ6.3 Phone Jack:-10dBV XLR Jack:-4dBV(Line)、-24dBV(MIC)
- AF Output Impedance 600Ω
- Squelch Pilot Tone & Noise Mute
- Output Connector Balanced XLR Socket x1 / Unbalanced φ6.3mm PHONE JACK x1
- Power Supply DC12~15V/500mA
- Dimension 212.3mm(W)*38.3mm(H)* 144mm(D)
RU-G3TB Specification
- Frequency Preparation PLL Synthesized Control
- Carrier Frequency Range UHF 470~960 MHz
- 3x Frequency range 856.100 - 864.900 MHz (F band)
606.500 - 629.900 MHz (U band)
721.500 - 748.375 MHz (G band)
658.125 - 678.500 MHz (D band)
487.125 - 506.500 MHz (I band)
502.000 - 694.000 MHz (T band)
- Frequency Setting Remoset U Ultrasonic
- RF Outputs Low/High
- Stability <±10KHz@ Fc
- Frequency Deviation ±48KHz
- Spurious Emissions <-50dBc
- Display LCD+LED
- Input Connector MINI XLR
- Controls Power ON/OFF, Mute ON/OFF, Group, Channel, Frequency, GAIN Adjust, Auto Power Off Adjust, Lock-on Mode
- Battery UM3, AA x2
- Slot-in Charging Yes
- Dimension 62mm(W) x 80.3mm(H) x 22.6mm(D)
- ราคาปกติ : 18,200.00 ฿
- ราคาพิเศษ : 16,380.00 ฿
-
|
| |
|
| |
|
|
|
Wireless Microphone - JTS
