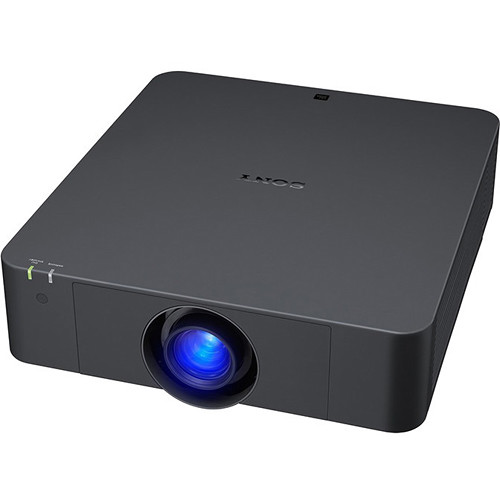

The VPL-FH60 installation projector is ideal for a wide range of business, education and entertainment applications. The energy-efficient High Pressure Mercury (HPM) lamp source is teamed with Sony's advanced BrightEra 3LCD projection engine, delivering extremely bright, detail-packed WUXGA resolution images with generous 5000 lumens brightness and rich, stable colours.
Size of effective display area0.76” (19 mm) x 3 BrightEra LCD Panel, Aspect ratio: 16:10
Number of pixels6,912,000 (1920 x 1200 x 3) pixels
Screen size40' to 600'
Contrast ratio (full white / full black)2000:1
Keystone -Vertical Horizontal+/- 30 degrees

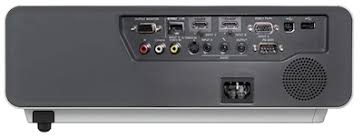

INPUT OUTPUT (Computer/Video/Control)
INPUT A RGB / Y PB PR input connector: Mini D-sub 15-pin (female)
Audio input connector: Stereo mini jack
INPUT B DVI input connector: DVI-D 24-pin (single link), HDCP support
Audio input connector: Shared with INPUT A
INPUT C HDMI input connector: HDMI 19-pin, HDCP support
Audio input connector: HDMI audio support
INPUT D HDBaseT interface connector: RJ45, 4 play (Video, Audio, LAN, Control)
VIDEO IN Video input connector: BNC
Audio input connector: Shared with INPUT A
OUTPUT AMonitor output for INPUT A connector: Mini D-sub 15-pin (female)
Audio output connector: Stereo mini jack
OUTPUT BMonitor output for INPUT B connector: DVD-D 24-pin (single link), HDCP not supported
Audio output Monitor out connector: Stereo mini jack
REMOTED-sub 9-pin (male) / RS232C
LANRJ45, 10BASE-T/100BASE-TX
IR (Control S)Stereo mini jack, Plug in power DC5V
