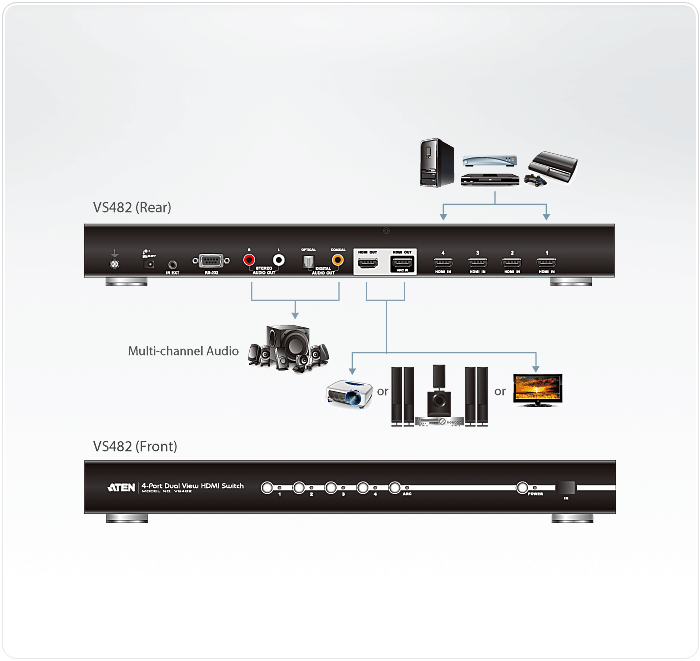

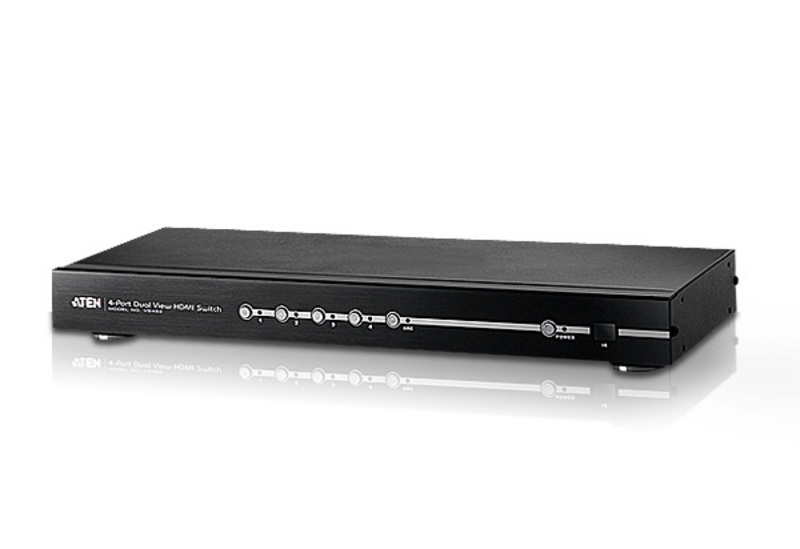

The VS482 supports four HDMI video input sources and two HDMI output displays. It is designed for two HDTV or audio/video receiver (AVR) applications. The VS482 complies with HDMI standards, and is designed to support 3D content, as well as Audio Return Channel (ARC) function. The VS482 also offers instant switching and has OSD display controls for video, audio, system configuration and information.
Allows up to four HDMI A/V sources to be connected to two HDMI displays
HDCP 1.4 compatible, HDMI (3D, Audio Return Channel and Deep Color)
Supports Dolby True HD and DTS HD Master Audio
Audio Return Channel (ARC) function – connect an HDMI cable to the ARC port to send audio from your source device to your audio/video receiver
OSD for system configuration setting and information display
Instant switching between HDMI input sources via front panel pushbuttons or through the RS-232 serial control port
Feature EDID Expert technology to set up different configurations via different EDID mode
Allows users to view the HDMI input source port / device for easy selection
Supports superior video quality – HDTV resolutions of 480p, 720p, 1080i, 1080p (1920x1080); up to WUXGA (1920 x 1200)
Built-in bi-directional RS-232 serial control port for high-end system control *
Extra audio from HDMI input signal that supports both optical and coaxial digital audio and one stereo audio output
IR control signal extension – extend the reach of the IR controller by adding an IR receiver unit
