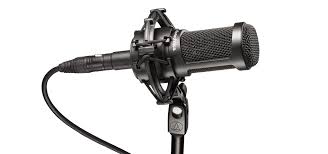

AT2050 provides consistent, superior performance in switchable cardioid, omnidirectional and figure-of-eight polar pattern settings. Its dual large diaphragms are gold-vaporized and aged to achieve optimum characteristics over years of use. the microphone is ideal for studio and live sound use on vocals, piano, strings, drum overheads, guitar amps, and more.
ELEMENT
Externally-polarized (DC bias) condenser
POLAR PATTERNS
Cardioid, Omnidirectional, Figure-of-Eight
FREQUENCY RESPONSE
20-20,000 Hz
LOW FREQUENCY ROLL-OFF
80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY
–42 dB (7.9 mV) re 1V at 1 Pa
IMPEDANCE
120 ohms
MAXIMUM INPUT SOUND LEVEL
149 dB SPL, 1 kHz at 1% T.H.D.; 159 dB SPL, with 10 dB pad (nominal)
NOISE
17 dB SPL
DYNAMIC RANGE (TYPICAL)
132 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO
77 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS
11-52V DC, 4.7 mA typical
SWITCHES
Polar selection; Flat, roll-off; 10 dB pad (nominal)
