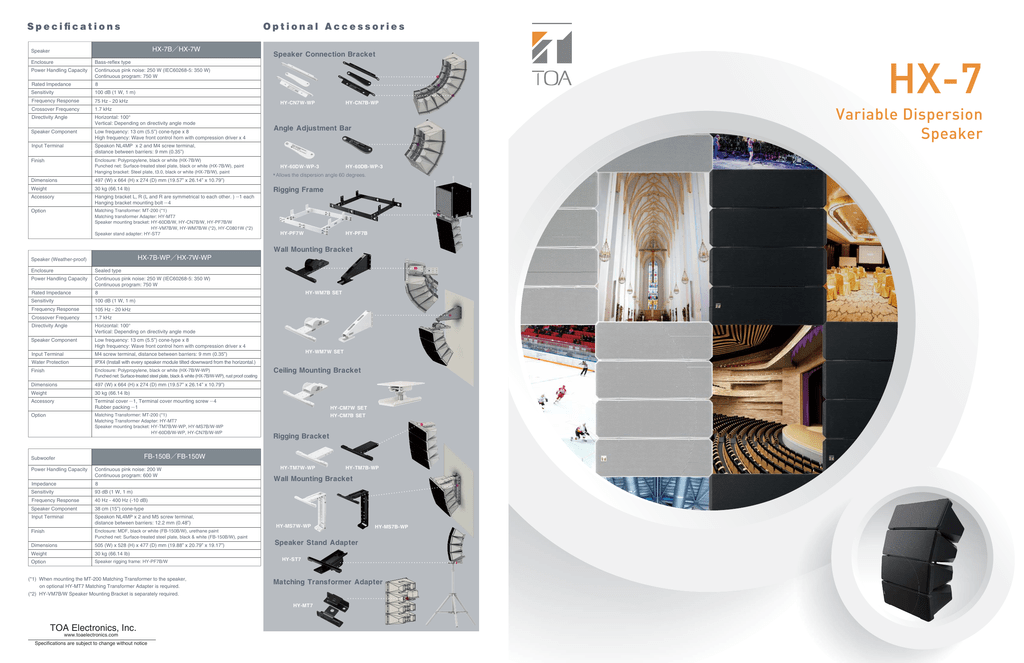

TOA HX-7W 2-way compact Array speaker system 250-750 w.
TOA HX-7W 2-way compact Array speaker system 250-750 w.
|
- ยี่ห้อ : TOA
- รุ่น : HX-7W
| Enclosure |
Bass-reflex type |
| Power Handling Capacity |
Continuous pink noise: 250 W (IEC60268-5: 350 W)
Continuous program: 750 W |
| Rated Impedance |
8 Ω |
| Sensitivity |
100 dB (1 W, 1 m) |
| Frequency Response |
75 Hz - 20 kHz |
| Crossover Frequency |
1.7 kHz |
| Directivity Angle |
Horizontal: 100゜
Vertical: Depending on directivity angle mode |
| Speaker Component |
Low frequency: 13 cm (5.5') cone-type × 8
High frequency: Wave front control horn with compression driver × 4 |
| Input Terminal |
Speakon NL4MP × 2 and M4 screw terminal, distance between barriers: 9 mm (0.35') |
| Finish |
Enclosure: Polypropylene, white
Punched net: Surface-treated steel plate, white, paint
Hanging bracket: Steel plate, t3.0, white, paint |
| Dimensions |
497 (W) × 664 (H) × 274 (D) mm (19.57' × 26.14' × 10.79') |
| Weight |
30 kg (66.14 lb) |
| Accessory |
Hanging bracket L, R (L and R are symmetrical to each other.) …1 each,
Hanging bracket mounting bolt …4 |
| Option |
Matching transformer: MT-200 (*1)
Matching transformer adapter: HY-MT7
Speaker mounting bracket: HY-60DW, HY-CN7W, HY-PF7W, HY-VM7W, HY-WM7W (*2),
HY-C0801W (*2)
Speaker stand adapter: HY-ST7 |
HY‐60DB ANGLE ADJUSTMENT BRACKET 1,770.00
HY‐CN7B SPEAKER CONNECTION BRACKET 1,460.00
HY‐PF7W SPEAKER RIGGING FRAME 5,730.00
HY‐VM7W SPEAKER RIGGING BRACKET 18,380.00
HY‐WM7B SPEAKER WALL MOUNTING BRACKET 11,640.00 x2
HY‐MT7 MATCHING TRANSFORMER ADAPTER 3,130.00- ราคาปกติ : 55,000.00 ฿
- ราคาพิเศษ : 46,750.00 ฿
-
|
| |
|
| |
|
|
|
