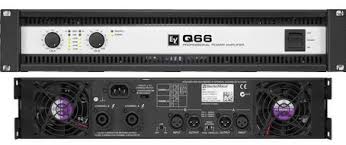

Electro-Voice Q66-II Stereo Power Amplifier 600 w.4-ohms
Electro-Voice Q66-II Stereo Power Amplifier 600 w.4-ohms
|
- ยี่ห้อ : Electro-Voice
- รุ่น : Q66-II
Q66 900 W per channel power amplifier
| Amplifier Gain |
32 dB |
| Continuous Rated Power (1 kHz, THD 1%) 2Ω |
900 Watts |
| Continuous Rated Power (1 kHz, THD 1%) 4Ω |
600 Watts |
| Continuous Rated Power (1 kHz, THD 1%) 8Ω |
380 Watts |
| Continuous Rated Power (20-20 kHz,THD<0,2%) 4Ω |
500 Watts |
| Continuous Rated Power (20-20 kHz,THD<0,2%) 8Ω |
250 Watts |
| Cooling |
Front-to-Rear, 3-stage fans |
| DIM 30 |
0.05 % |
| Electronics Type |
Amplifier |
| Frequency Response |
10 Hz - 40 kHz ±1 dB |
| Impedance |
2/4/8 Ω |
| Input Impedance (Balanced) |
20 kΩ |
| Input Sensitivity |
+3.1 dBu |
| Intermodulation Distortion (SMPTE) |
0.1 % |
| Maximum Bridged Output 4Ω |
1800 Watts |
| Maximum Bridged Output 8Ω |
1200 Watts |
| Maximum Input Voltage |
+21 dBu 8.69 Vrms |
| Network Control (IRIS-Net) |
No |
| Signal-to-Noise Ratio (A-weighted) |
107 dB |
| Slew Rate |
26 V/µs |
| Topology |
Class-AB |
| Total Harmonic Distortion |
0.03 % |
- ราคาปกติ : 44,000.00 ฿
- ราคาพิเศษ : 39,600.00 ฿
-
|
| |
|
| |
|
|
|
