TOA TT-208 weekly Program Timer *AS model*
TOA TT-208 weekly Program Timer *AS model*
|
- ยี่ห้อ : TOA
- รุ่น : TT-208

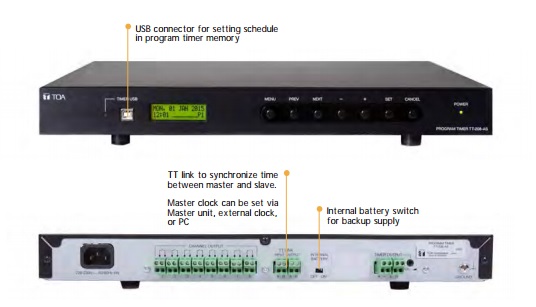

- The TT-208 is a weekly program timer that comes with 8 channels out contact switch and 1 output contact with westminister chime audio.
| Power Source |
220 - 230 V AC, 50/60 Hz |
| Power Consumption |
10 W |
| Audio Output |
Westminster Chime, Level : 0 dB, 600 |
| Frequency Response |
20 Hz - 20 kHz |
| Synchronise Time |
Send out pulse per 1 minute |
| Control Output |
8 channels contact switch (NO), 1 output contact switch (NO) |
| Display |
Power Indicator : Green, LCD Character : Back light green, USB Indicator PC Link : Orange |
| Operating Temperature |
0 ℃ to +40 ℃ |
| Operating Humidity |
Under 90% RH (no condensation) |
| Color |
Front Panel : Aluminum, Black, Alumite
Case : SECC plate, black, paint |
| Dimensions |
420 (W) × 59 (H) × 342 (D) mm (16.54 × 2.32' × 13.46')' |
| Weight |
3.2 kg (7.05 lb) |
| Option |
Rack-mounting bracket: MB-15B |
| Accessories |
Power cable (YA-301) x 1, Removable terminal plug (2 pin) x 12, CD Rom (Software & Manual) x 1 |
- ราคาปกติ : 25,400.00 ฿
- ราคาพิเศษ : 21,590.00 ฿
-
|
| |
|
| |
|
|
|
