TOA WS-5225 UHF. Hand Held Wireless Microphone Set
TOA WS-5225 UHF. Hand Held Wireless Microphone Set

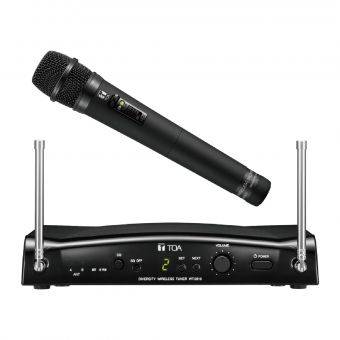

รหัสสินค้า : CO4ERยี่ห้อ : TOAรุ่น : WS-5225The WS-5225 includes a handheld wireless microphone WM-5225 and a diversity wireless tuner WT-5810. The WM-5225 wireless microphone employs an electret condenser microphone capsule and is suitable for any applications.
Product Composition
Handheld wireless microphone WM-5225 …1
Frequency Range
576 - 865 MHz (*1), UHF
Tone Frequency
32.768 kHz
Wireless microphone
Microphone Element
Electret condenser microphone unit: Unidirectional
Modulation
Frequency modulation
Channel Selectable
64 channels (the number of channels may differ from country to country)
RF Carrier Power
Less than 50 mW (Factory preset 10 mW ERP)
Oscillator
PLL synthesized
Maximum Input Level
126 dB SPL
Maximum Deviation
±40 kHz
Audio Frequency Response
100 Hz - 15 kHz
Battery
WB-2000 rechargeable battery (option) or AA alkaline dry cell battery
Battery Life
Approx. 13 h (when the WB-2000 rechargeable battery is used)
Indicator
Power/Battery lamps
Antenna
Built-in type
Finish
Resin, coating
Diversity wireless tuner
Power Source
AC mains (supplied AC adapter must be used)
Power Consumption
130 mA (12 V DC)
Channel Selectable
16 channels
Receiving System
Double super-heterodyne
Diversity System
Space diversity
Mixing Output
MIC: -60 dB (*1), 600 Ω, balanced, XLR-3-32 type connector
Mixing Input
-20 dB (*1), 10 kΩ, unbalanced, phone jack
Antenna
Whip antenna
Receiving Sensitivity
90 dB or more, Signal to Noise ratio (20 dBμV input, 40 kHz deviation)
Squelch Sensitivity
16 - 40 dBμV variable
Squelch System
Using together of noise SQ, carrier SQ and tone SQ
Indicator
ANT A/B, Audio (peak), Battery alarm, Channel number
Channel Check
Usable frequencies scanning
Signal to Noise Ratio
104 dB or more (A-weight, unbalanced output)
Harmonic Distortion
1 % or less (typical)
Frequency Response
100 Hz - 15 kHz, ±3 dB
ราคาปกติ : 13,270.00 ฿ราคาพิเศษ : 11,280.00 ฿
