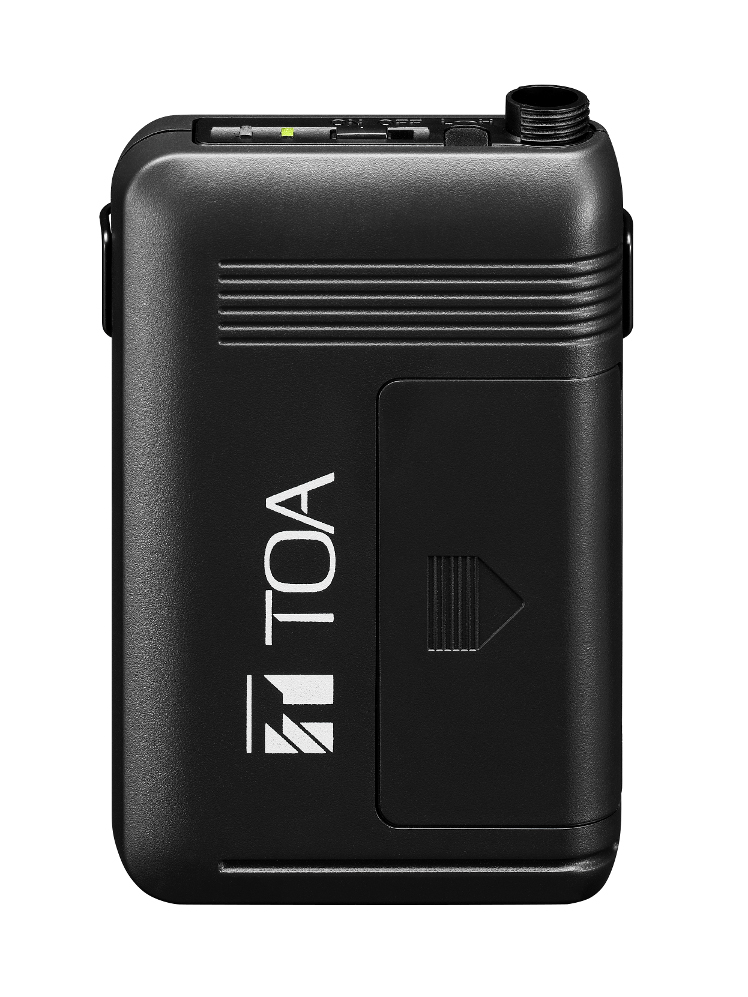

The WM-5325 wireless transmitter has been manufctured for use with a UHF system. It is for use in speech reinforcement applications. Thanks to the PLL-synthesizer system, 64 different operating frequencies are made available.
Modulation
Frequency modulation
Frequency Range
576 - 937.5 MHz (*2), UHF
Channel Selectable
64 channels (the number of channels may differ from country to country)
RF Carrier Power
Less than 50 mW (Factory preset 10 mW ERP)
Tone Frequency
32.768 kHz
Oscillator
PLL synthesized
Maximum Input Level
-14 dB to -29 dB (*1) (Audio level control: Min. to Max.)
Maximum Deviation
±40 kHz
Audio Frequency Response
100 Hz - 15 kHz
Battery
WB-2000 (WB-2000-2 contains 2 pieces) rechargeable battery (option)
or AA alkaline dry cell battery
Battery Life
Approx. 13 h (when the WB-2000 rechargeable battery is used)
Approx. 10 h (when the alkaline battery is used)
