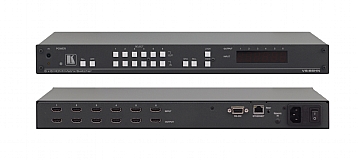

The VS-66HN is a high-performance matrix switcher for HDMI signals. It reclocks and equalizes the signal and can route any input to any or all outputs simultaneously.
INPUTS:
6 HDMI connectors.
OUTPUTS:
6 HDMI connectors.
BANDWIDTH:
6.75Gbps (2.25Gbps per graphic channel).
COMPLIANCE WITH HDMI STANDARD:
HDMI and HDCP.
RESOLUTION:
Up to UXGA; 1080p.
POWER CONSUMPTION:
100−240V AC, 50/60Hz, 40VA.
CONTROLS:
Front panel buttons, infrared remote control transmitter, RS−232, Ethernet.
