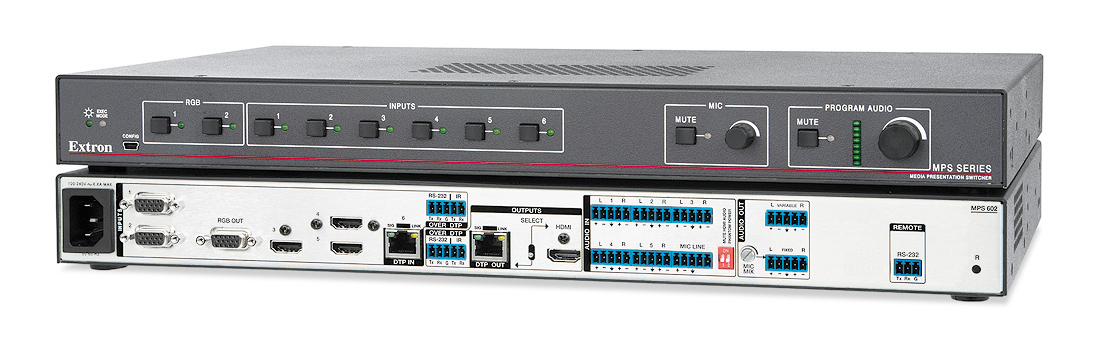

Extron MPS 409 HDMI, DVI, VGA, Video & Audio Switcher

เข้าชม 955 | ตอบ 0
Extron MPS 409 HDMI, DVI, VGA, Video & Audio Switcher
  • ยี่ห้อ : Extron
  • รุ่น : MPS 409
  •

    • สินค้าต้องสั่งล่วงหน้า 30-60 วัน พร้อมมัดจำ 40% ของมูลค่าสินค้า
    • Five switchers in one enclosure:
    • - 3x1 HDMI switcher
    • - 2x1 DVI switcher
    • - 2x1 VGA/HDTV component video switcher
    • - 2x1 composite video switcher
    • - 9x1 analog stereo audio switcher
    • Supported HDMI specification features include data rates up to 6.75 Gbps, Deep Color up to 12-bit, 3D, Lip Sync, and HD lossless audio formats
    • HDCP compliant
    • EDID Minder®, available on DVI and VGA inputs, automatically manages EDID communication between connected devices — EDID Minder ensures that all sources power up properly and reliably output content for display.
    • Multiple switcher modes — The MPS 409 features three, user-selectable switching modes for optimum flexibility in system design. For simplicity of control, Single Switcher mode routes only the selected input source to its designated output, while muting the other outputs. Separate Switcher mode allows the MPS 409 to operate as four separate and independent video switchers, all under a single point of control. Combine Mode provides for growth and additional digital sources by electronically combining the DVI and HDMI switchers to act as a single, 5x1 digital switcher.
    • Combine Switcher mode routes all DVI and HDMI sources to the HDMI output — Allows a combination of up to five HDMI or DVI sources to be switched to the HDMI output, simplifying cabling and reducing the total installation time.
    • Automatic input cable equalization — Actively conditions incoming digital signals to compensate for signal loss when using long cables, low quality cables, or source devices with poor HDMI and DVI signal outputs.
    • Audio breakaway — Provides the capability to break an audio signal away from its corresponding video signal and route to the program audio output, allowing the audio channels to be operated as a separate switcher.
    • Mic/line level input — Accommodates either microphone or line level audio signals.
    • 48V Phantom microphone power — Powers a condenser microphone.
    • Provides +5 VDC, 250 mA power on the HDMI and DVI outputs for external peripheral devices
    • Front panel security lockout — Prevents unauthorized use in non-secure environments. In lockout mode, a special button combination is required to operate the switcher from the front panel.
    • RS-232 control
    • Rack-mountable, 1U full rack width metal enclosure
    • Includes LockIt® HDMI cable lacing brackets
  • ราคาปกติ : 73,370.00 ฿
  • ราคาพิเศษ : 66,700.00 ฿
